MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
|
SMS/Call
|
SMS status, SMS configuration, Call utilities |
|
NETWORK
|
|
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT |
|
Connection monitoring
|
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
|
Firewall
|
Port forwards, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec
|
IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE
|
GRE tunnel |
|
PPTP, L2TP
|
Client/Server services can run simultaneously |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
|
FOTA
|
Firmware update from sever, automatic notification |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration |
|
MQTT
|
MQTT Broker, MQTT publisher |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
Modbus
|
Modbus TCP status/control |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
ARM Cortex-A7 1.2 GHz CPU |
|
RAM
|
128 MB (50 MB available for userspace) |
|
FLASH memory
|
512 MB (70 MB available for userspace) |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenLinux based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
SDK package with build environment provided |
|
INPUT/OUTPUT
|
|
|
Input
|
2 x Digital inputs, 1 x Isolated input, 1 x Analog input |
|
Output
|
1 x Digital Output, 2 x Relay outputs |
|
Configurable I/O
|
2 x Digital Inputs/Outputs |
|
Events
|
SMS status |
|
POWER
|
|
|

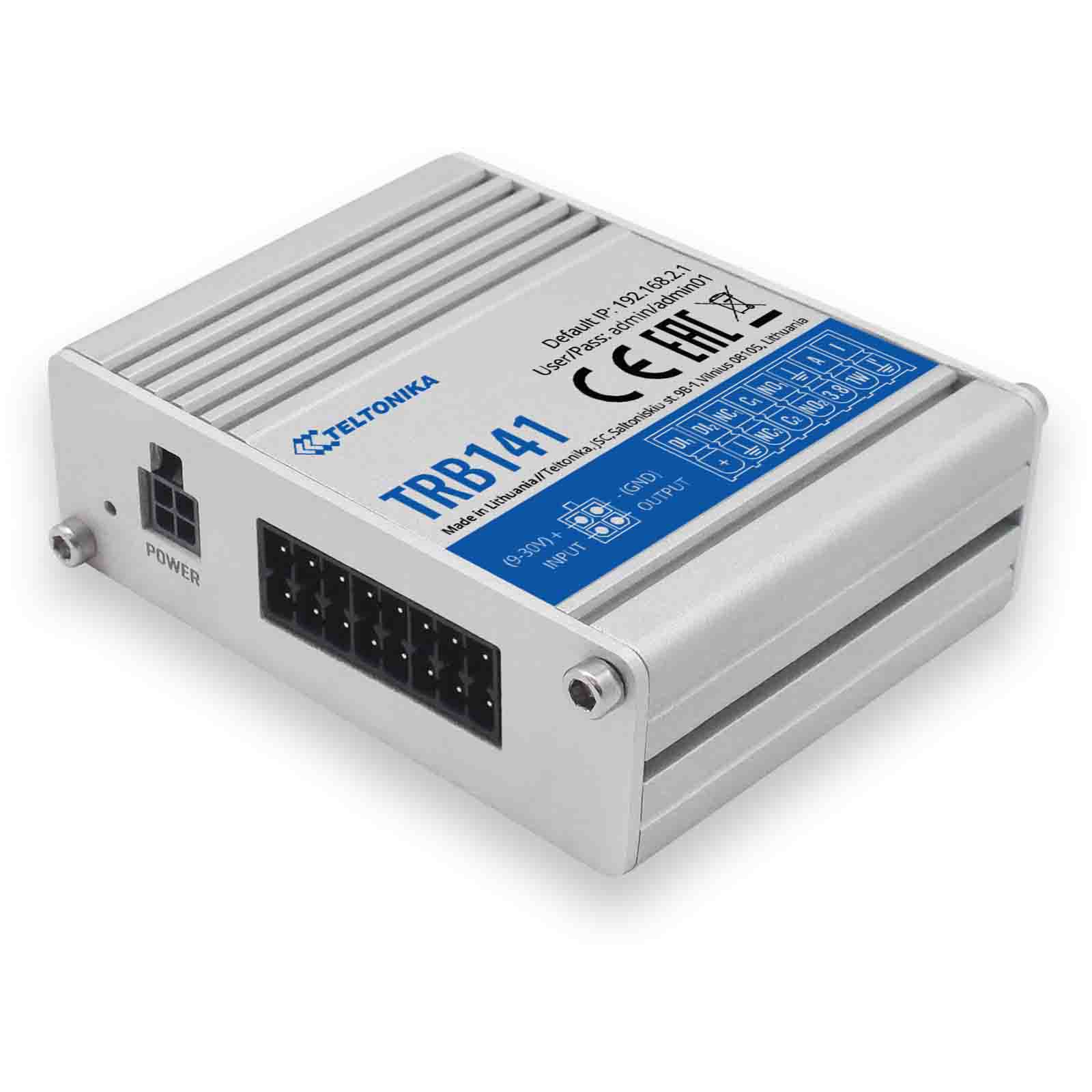

Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
|
Power consumption
|
< 5 W |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)
|
|
|

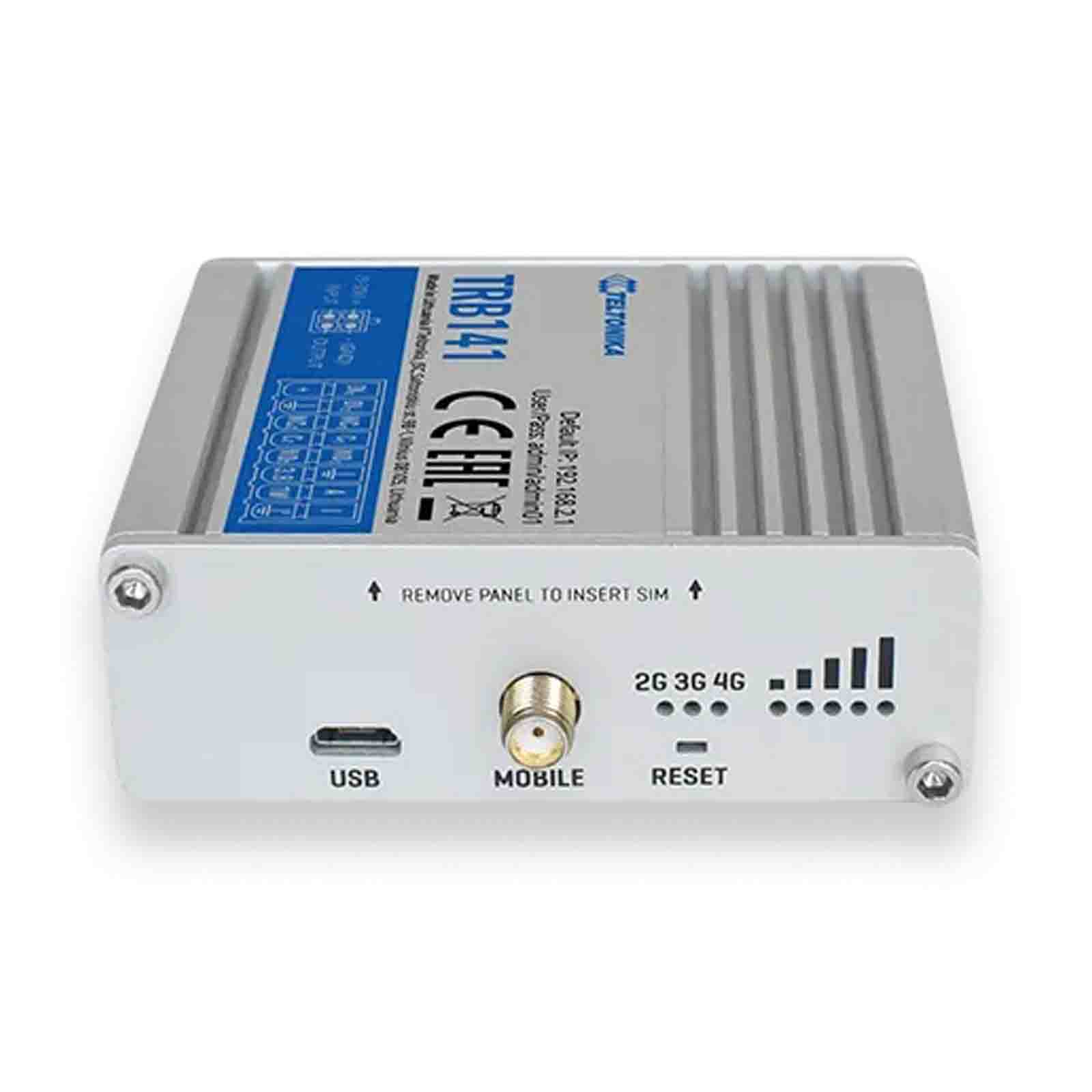

USB
|
Virtual network interface via USB |
|
I/Os
|
4 Inputs, 3 Outputs + 2 x Configurable Digital Inputs/Outputs on 4 pin power connector |
|
Status LEDs
|
3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED |
|
SIM
|
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
|
Power
|
4 pin DC connector with 2 x configurable Digital Inputs/Outputs |
|
Anntenas
|
1 x SMA for LTE |
|
Reset
|
Restore factory settings button |
|
PHYSICAL SPECIFICATIONS
|
|
|
Casing material
|
Aluminum housing |
|
Dimensions
|
60 mm x 70 mm x 18 mm (H x W x D) |
|
Weight
|
129 g |
|
Mounting options
|
Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10 % to 90 % non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE/RED, EAC, RoHS, WEEE |
|
EMI
|
|
|
Standards
|
Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
|
ESD
|
EN 61000-4-2:2009 |
|
RS
|
EN 61000-4-3:2006 + A1:2008 + A2:2010 |
|
EFT
|
EN 61000-4-4:2012 |
|
Surge protection
|
EN 61000-4-5:2014 |
|
CS
|
EN 61000-4-6:2014 |
|
DIP
|
EN 61000-4-11:2004 |
|
RF
|
|
|
Standards
|
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
|
SAFETY
|
|
|
Standards
|
IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
