ETHERNET
|
|
|
LAN
|
5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
PERFORMANCE SPECIFICATIONS
|
|
|
Bandwidth (Non-blocking)
|
10 Gbps |
|
Packet buffer
|
128 KB |
|
Jumbo frame support
|
9216 bytes |
|
MAC address table size
|
2K entries |
|
Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
|
PoE (passive)
|
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
|
Power consumption (idle/max)
|
< 0.4 W/ |
|
PHYSICAL INTERFACES (PORTS, LEDS)
|
|
|

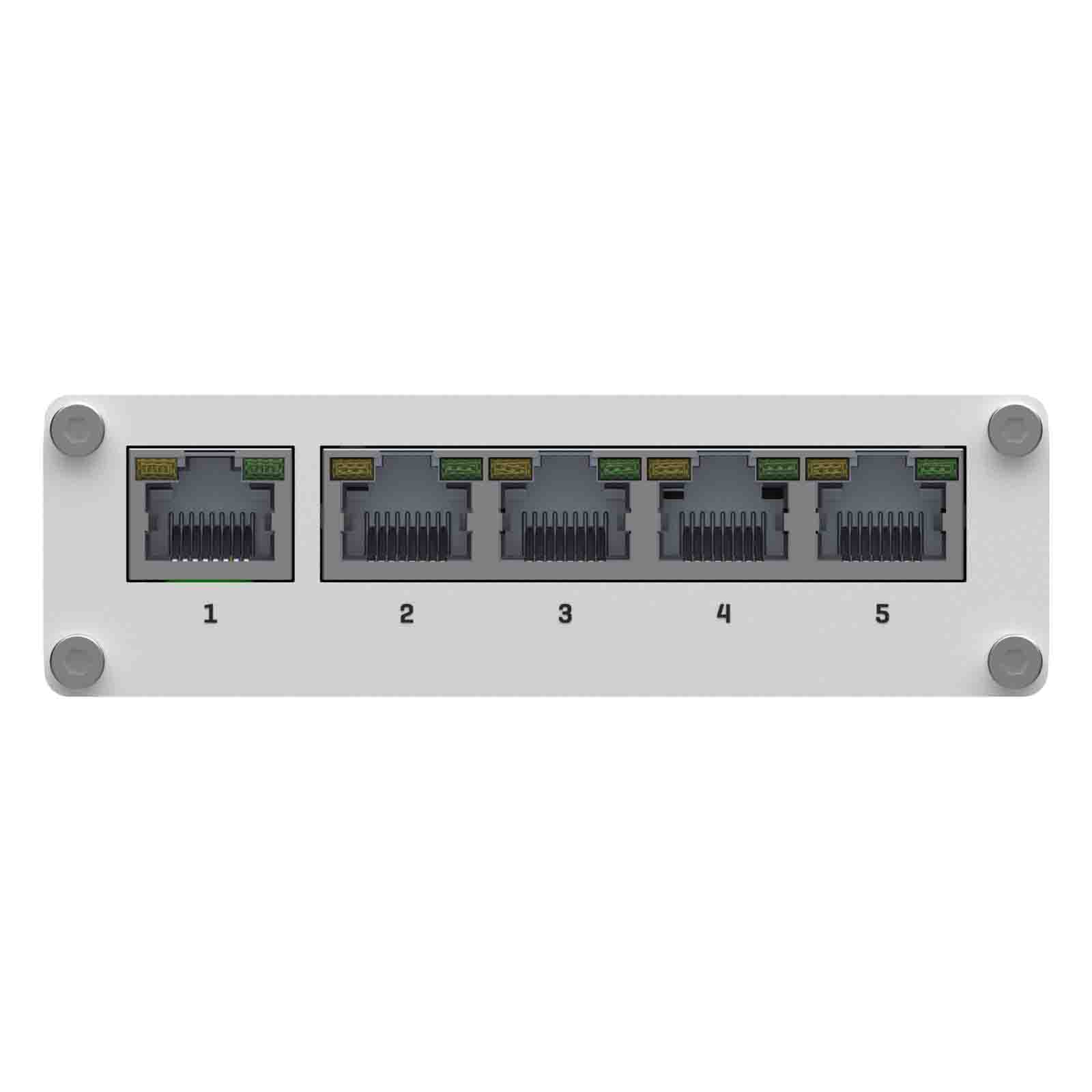

Ethernet
|
5 x RJ45 ports, 10/100/1000 Mbps |
|
Status LEDs
|
1 x Power LED, 10 x LAN status LED’s |
|

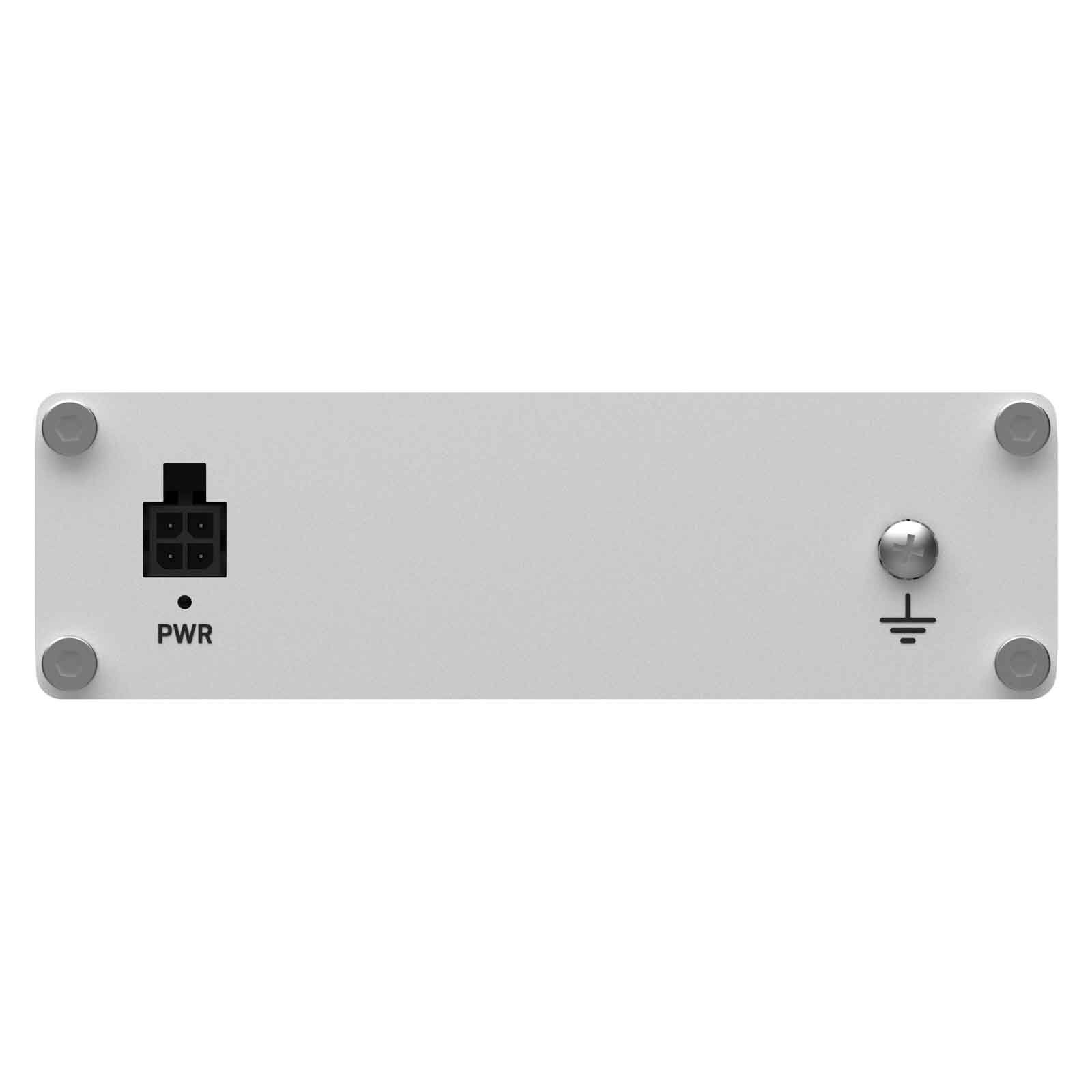

Power
|
1 x 4 pin DC connector |
|
Ground
|
1 x Grounding screw |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Full aluminum housing |
|
Dimensions (W x H x D)
|
100 x 30 x 85 mm |
|
Weight
|
227 g |
|
Mounting options
|
DIN rail or wall mounting (additional kit needed), flat surface placement |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 C to 75 C |
|
Operating humidity
|
10 % to 90 % non-condensing |
