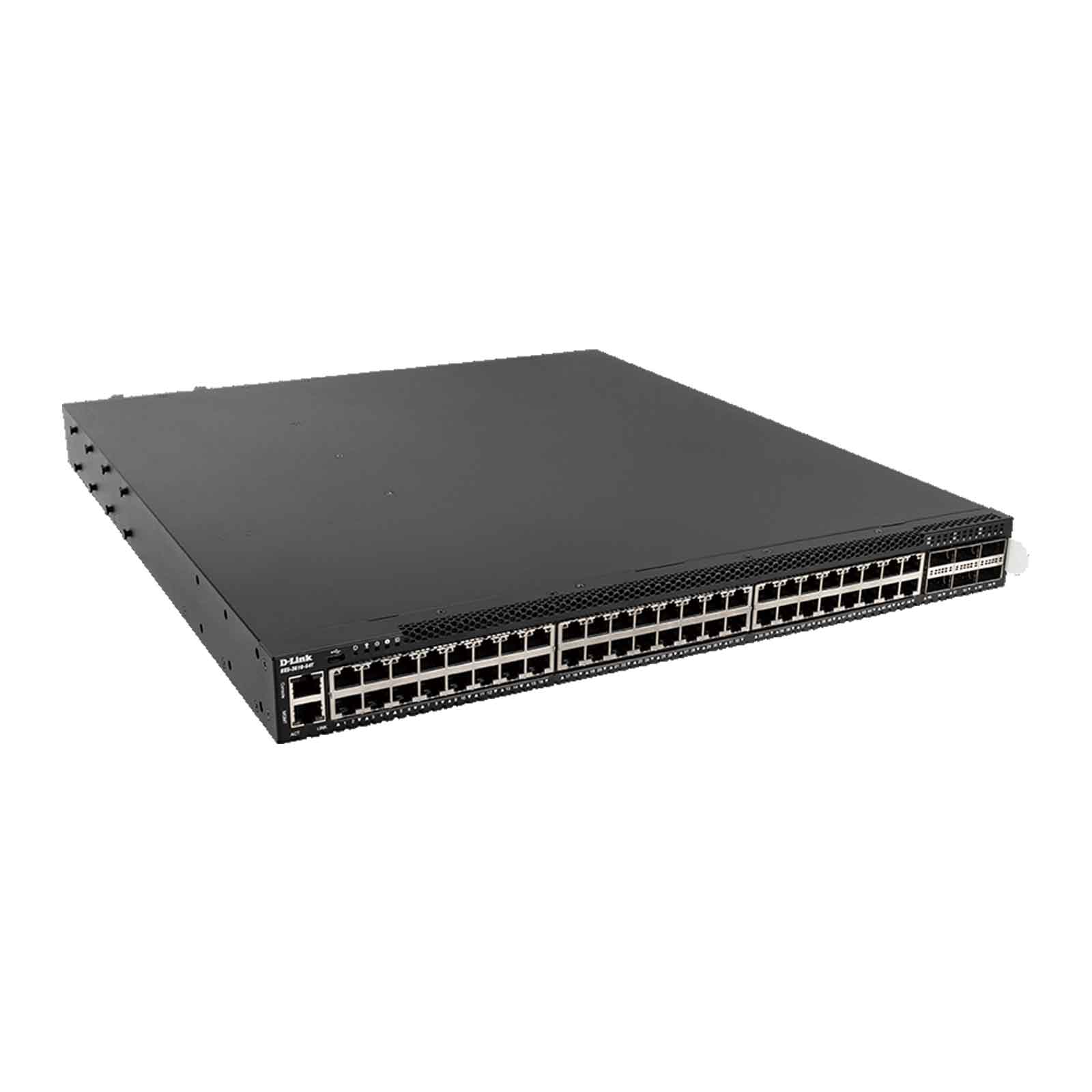

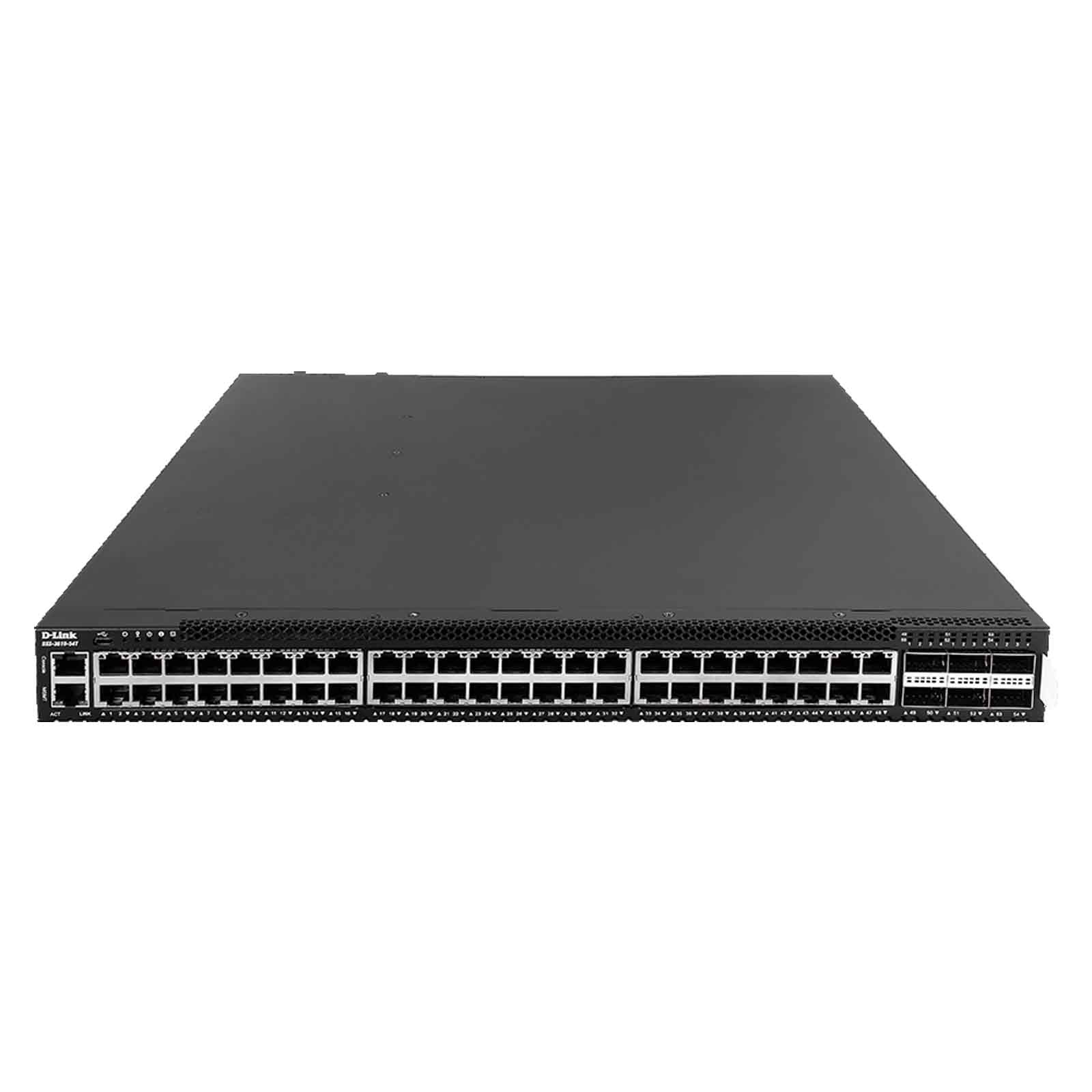

DXS-3610-54T
|
|
Switch layer
|
L3 |
Quality of Service (QoS) support
|
Tak |
Web-based management
|
Tak |
ARP inspection
|
Tak |
Basic switching RJ-45 Ethernet ports quantity
|
48 |
Basic switching RJ-45 Ethernet ports type
|
10G Ethernet (100/1000/10000) |
Console port
|
RJ-45 |
QSFP28 ports quantity
|
6 |
USB 2.0 ports quantity
|
1 |
Networking standards
|
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x |
10G support
|
Tak |
Port mirroring
|
Tak |
Full duplex
|
Tak |
IP routing
|
Tak |
Flow control support
|
Tak |
Link aggregation
|
Tak |
Spanning tree protocol
|
Tak |
Head-of-line (HOL) blocking
|
Tak |
VLAN support
|
Tak |
Virtual LAN features
|
MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN |
MAC address table
|
294912 entries |
Switching capacity
|
2211.84 Gbit/s |
Forwarding rate
|
1607.04 Mpps |
Number of queues
|
8 |
Static route
|
Tak |
Jumbo frames support
|
Tak |
Jumbo frames
|
9436 |
Packet buffer memory
|
32 MB |
DHCP features
|
DHCP client,DHCP server,DHCP snooping |
Access Control List (ACL)
|
Tak |
IGMP snooping
|
Tak |
SSH/SSL support
|
Tak |
BPDU filtering/protection
|
Tak |
Multicast support
|
Tak |
Management protocols
|
SNMP v1/v2c/v3 |
Rack mounting
|
Tak |
Stackable
|
Tak |
Colour
|
Black |
Form factor
|
1U |
Number of fans
|
5 fan(s) |
Electromagnetic compatibility
|
FCC, CE, C-Tick, IC, VCCI |
Certification
|
CB, cUL, LVD |
Physical stacking (units)
|
12 |
Virtual stacking (units)
|
32 |
Noise level (max)
|
76.6 dB |
Mean time between failures (MTBF)
|
- |
Power supply included
|
Tak |
Redundant power supply (RPS) support
|
Tak |
AC input voltage
|
110 - 240 V |
AC input frequency
|
50/60 Hz |
Power consumption (typical)
|
108.2 W |
Power Consumption (Max)
|
330.2 W |
Power over Ethernet (PoE)
|
Brak |
Operating temperature (T-T)
|
0 - 45 °C |
Storage temperature (T-T)
|
-40 - 70 °C |
Operating relative humidity (H-H)
|
0 - 95% |
Storage relative humidity (H-H)
|
0 - 95% |
Heat dissipation
|
1026 BTU/h |
Width
|
441 mm |
Depth
|
487.4 mm |
Height
|
43.5 mm |
Weight
|
9.88 kg |
