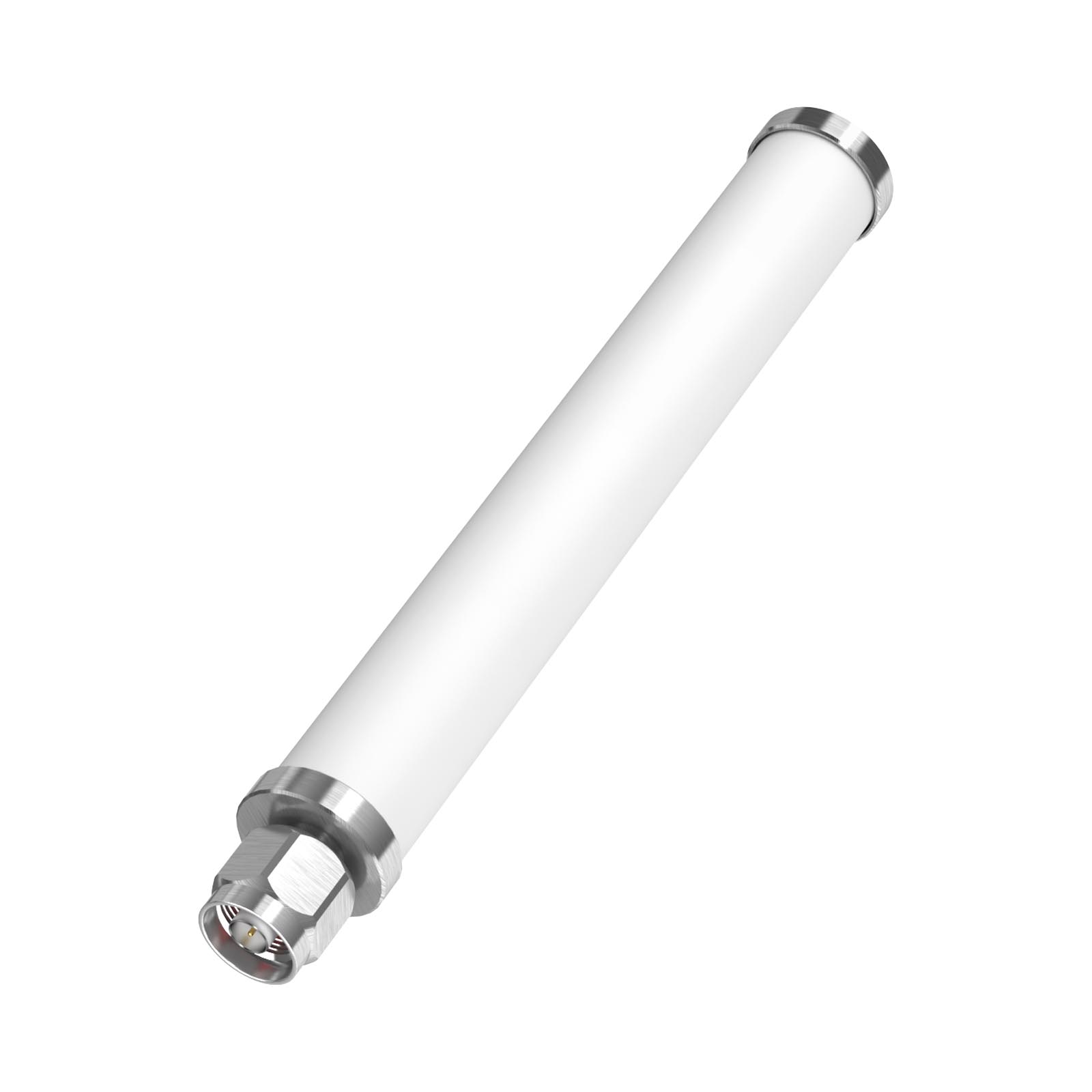

AO5G1 QuOmni 5G/LTE SISO
|
|
Częstotliwość
|
617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.7 GHz 5.2 - 6.0 GHz |
Wspierane pasma LTE
|
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
Zysk
|
617 - 960 MHz : 3 dBi 1.7 - 2.2 GHz : 4 dBi 3.3 - 4.7 GHz : 4.5 dBi 5.2 - 6.0 GHz : 2.5dBi |
VSWR
|
<1.80, max <2.00 |
Szerokość wiązki
|
360°/25° ±5° |
Polaryzacja
|
Pionowa |
Impedancja
|
50 Ω |
Inne
|
|
Materiał
|
ABS |
Stopień ochrony
|
IP67 |
Wymiary
|
ø30 x 220 mm (ø1.18 x 8.66 inch) |
Waga
|
0.2 kg |
Temp. pracy
|
od -40°C do 80°C (-40°F to 176°F) |
