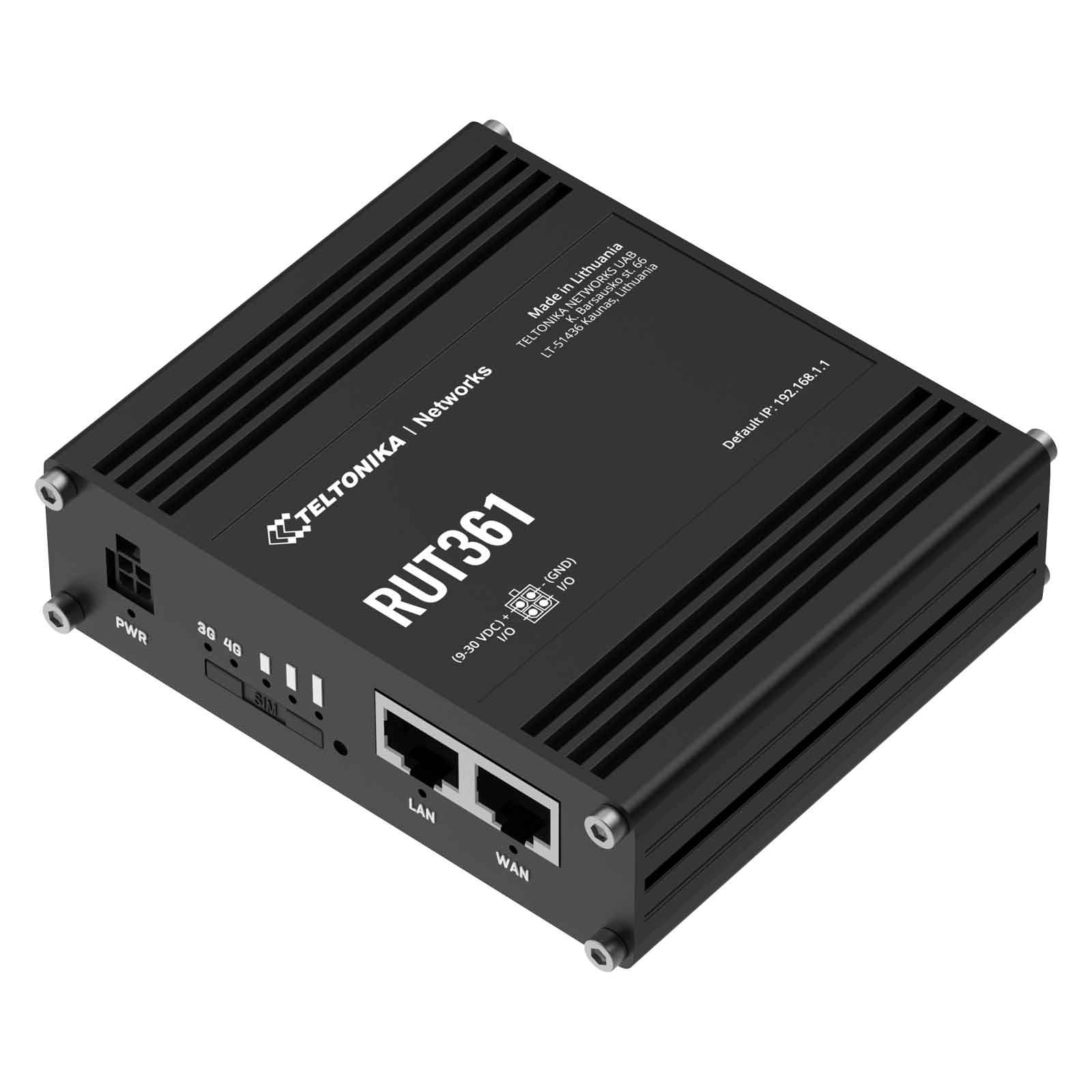

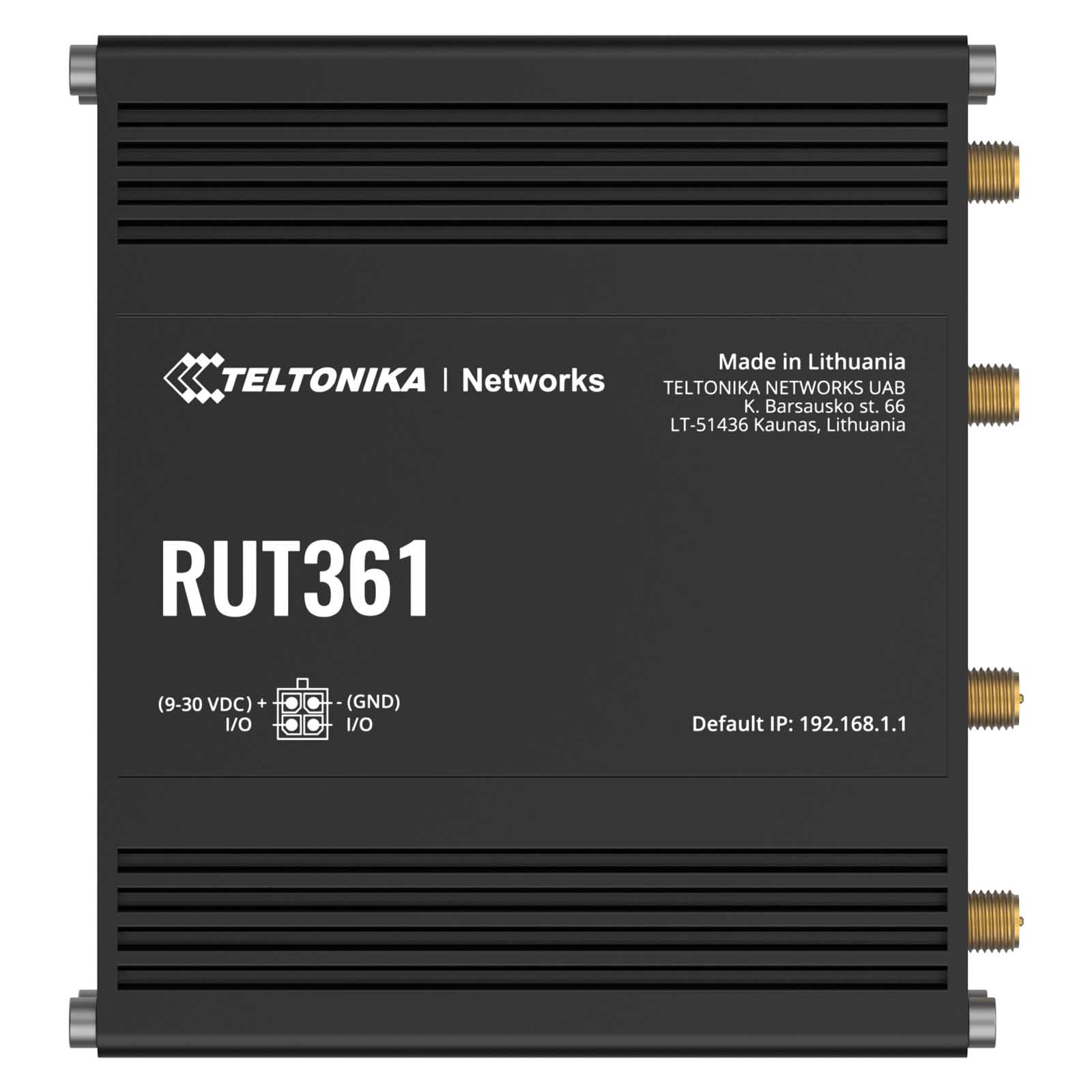

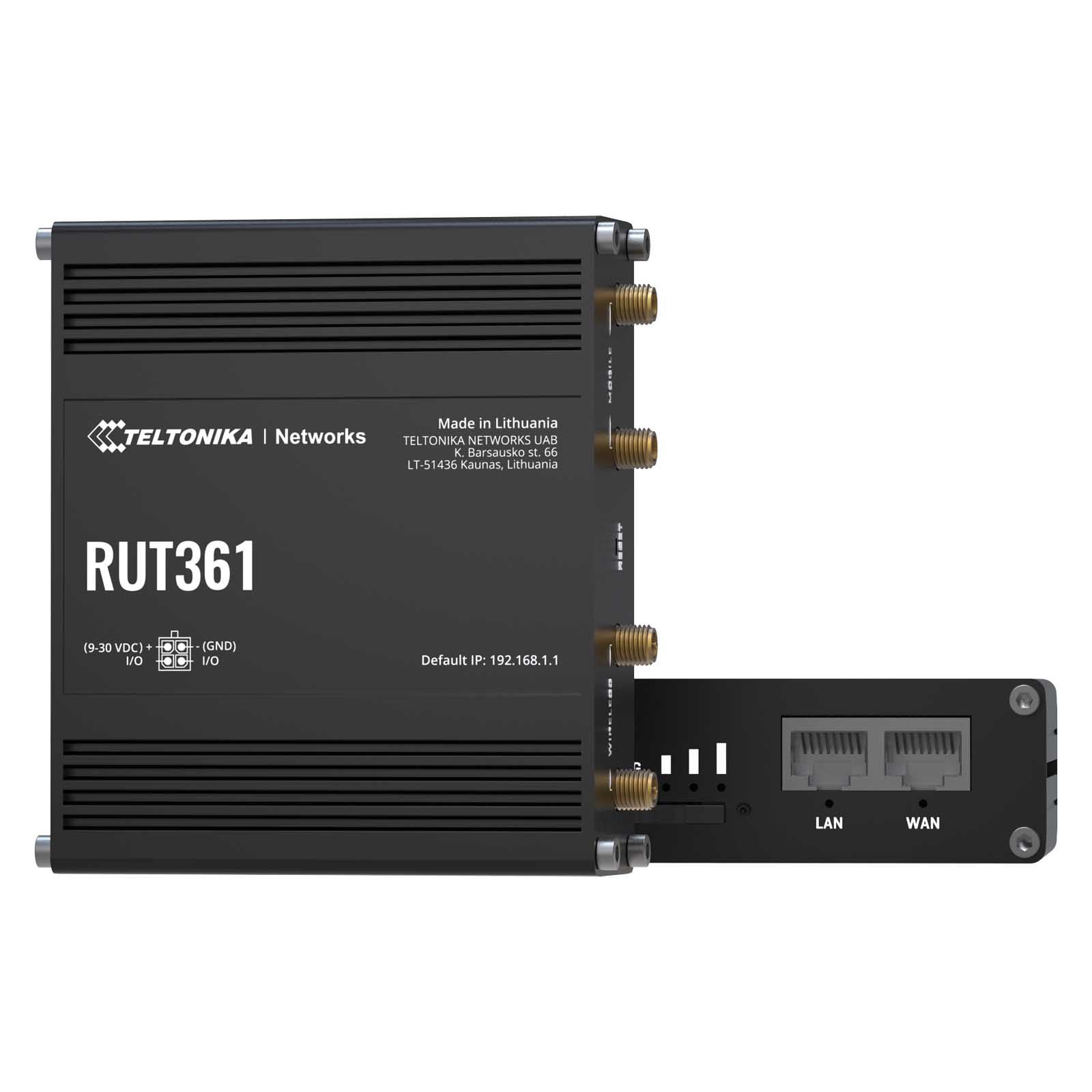

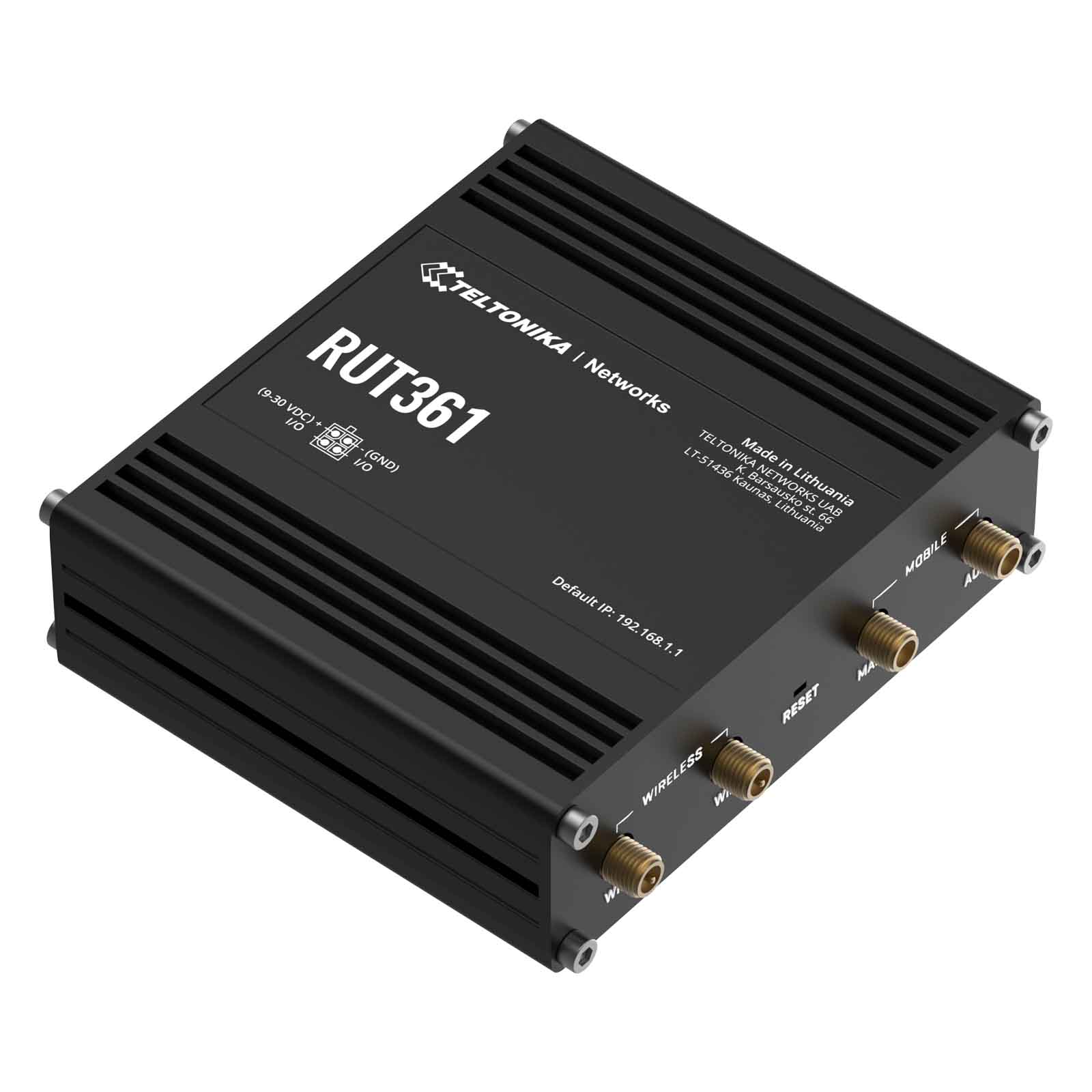

Teltonika RUT361 router LTE (RUT361100000)
Teltonika RUT361 (RUT361100000) to kompaktowy router LTE Advanced (LTE-A) z 2x portami Fast Ethernet 10/100 Mb/s, WiFi 2,4 GHz i oprogramowaniem RutOS do zaawansowanych rozwiązań sieciowych.
RUT361 to ulepszona wersja bestsellerowego modelu Teltoniki
RUT240. Ten kompaktowy przemysłowy router oferuje możliwość połączenia z Internetem za pomocą sieci komórkowej, Wi-Fi i przewodowej. Router RUT361 jest wyposażony w dwa porty Fast Ethernet, Wi-Fi 2,4 GHz 802.11 b/g/n oraz moduł komórkowy 4G LTE kat. 6, oferujący prędkości danych do 300 Mb/s.
RUT361 to solidny router komórkowy o prędkości do 300 Mb/s z agregacją nośnych, niezbędny dla rozwiązań IoT wymagających nieprzerwanej sieci w trudnych warunkach. Zdalne monitorowanie, zaawansowane funkcje bezpieczeństwa i przełączanie awaryjne WAN sprawiają, że ten router LTE Cat 6 jest bogaty w funkcje, a dwie anteny Wi-Fi zapewniają większe możliwości zastosowania urządzenia w różnych aplikacjach M2M.
Teltonika RUT361 (RUT361100000) obsługuje pasma:
- 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32*
- 4G (LTE-TDD): B38, B40, B41, B42*, B43*
- 3G: B1, B3, B5, B8
- *LTE-FDD B32, B29 obsługuje tylko Rx i jest przeznaczony tylko dla dodatkowego nośnika
- *Pasma B42, B43 są opcjonalne
Najważniejsze cechy:
- 2x porty Fast Ethernet 10/100 Mb/s
- 4G LTE kat. 6
- Szybkość sieci komórkowej do 300 Mb/s dzięki agregacji pasm (carrier aggregation)
- Praca w pasmie 2,4 GHz, standardy 802.11 b/g/n
- Mały rozmiar - łatwa integracja w dowolnym miejscu
- Wytrzymała aluminiowa obudowa
- Zapora sieciowa i liczne usługi VPN, w tym OpenVPN, IPsec, PPTP, L2TP i SSTP
- Kompatybilny z systemem zdalnego zarządzania Teltonika RMS
Zawartość opakowania:
- Router RUT361
- Zasilacz 18 W
- 2x antena LTE (demontowalne, SMA męskie)
- 2x antena WiFi (demontowalne, RP-SMA męskie)
- Kabel Ethernet o dł. 1,5 m
- Adapter do karty SIM
- Skrócona instrukcja obsługi
MOBILE
- Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
- Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD: Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list: Operator black/white list
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
WIRELESS
- Wireless mode: 802.11 b/g/n, 2x2 MIMO, Access Point (AP), Station (STA)
- Wi-Fi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID: ESSID stealth mode
- Wi-Fi users: Up to 50 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r)
- Wireless MAC filter: Whitelist, blacklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
- WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
- Supported modes: Client, Server
- Supported connection types: TCP
MODBUS
- Supported modes: Server, Client
- Supported connection types: TCP
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
- Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol: HTTP(S), MQTT, Azure MQTT
- Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server
MODBUS MQTT GATEWAY
- Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker
DNP3
- Supported modes: Station, Outstation
- Supported connection: TCP
DLMS
- DLMS Support: DLMS - standard protocol for utility meter data exchange
MONITORING & MANAGEMENT
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA: Firmware update from server, automatic notification
- SSH: SSH (v1, v2)
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC: Management API over HTTP/HTTPS
- MODBUS: MODBUS TCP status/control
- RMS: Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
- CPU: Mediatek, 580 MHz, MIPS 24KEc
- RAM: 128 MB, DDR2
- FLASH storage: 16 MB serial NOR flash
FIRMWARE / CONFIGURATION
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA: Update FW
- RMS: Update FW/configuration for multiple devices at once
- Keep settings: Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
- GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.
INPUT / OUTPUT
- Input: 2 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Output: 2 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
POWER
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive): Passive PoE can be installed upon request.
- Power consumption: Idle: < 2.4 W, Max: < 4.7 W
PHYSICAL INTERFACES

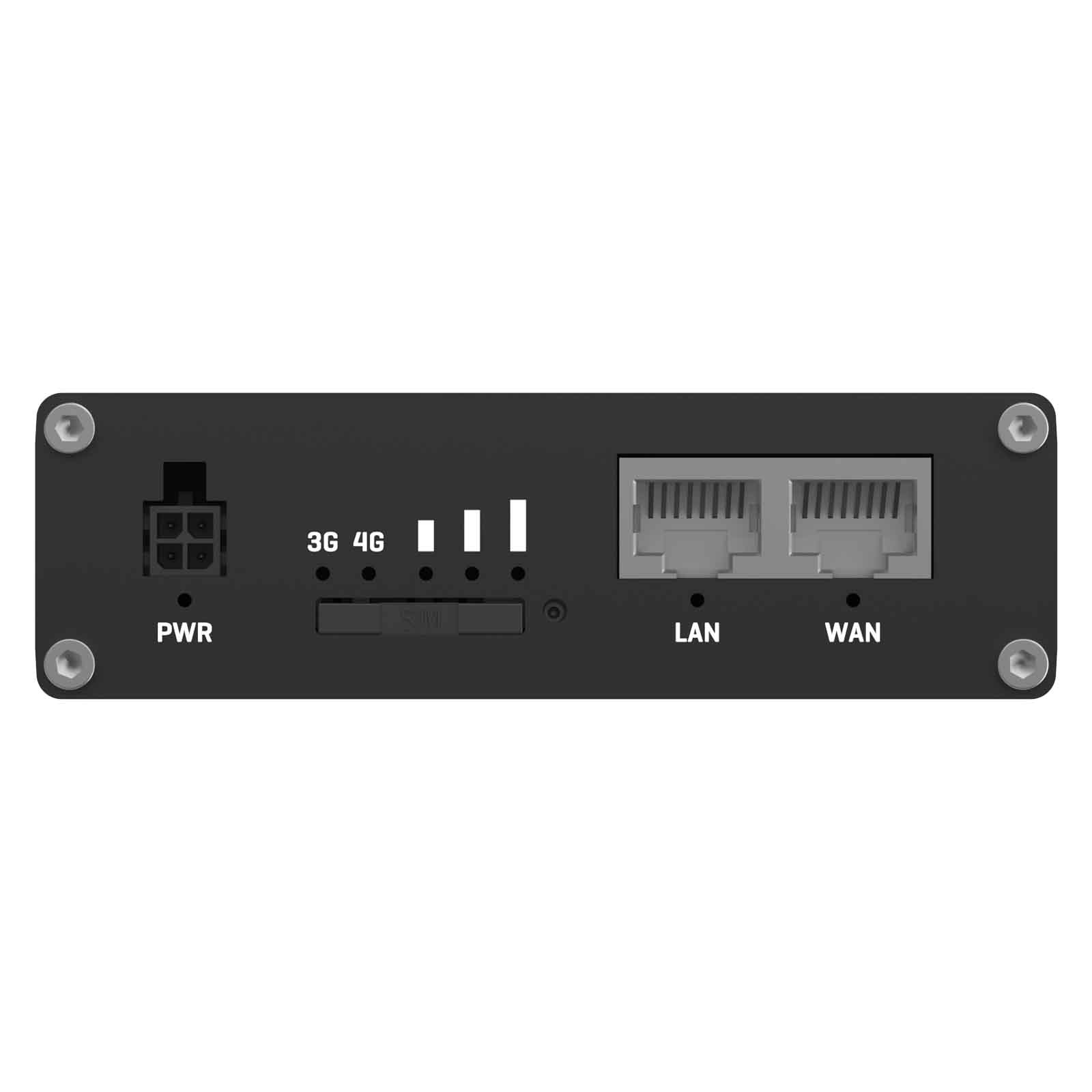

- Ethernet: 2 x RJ45 ports, 10/100 Mbps
- I/O’s: 2 x Digital Input, 2 x Digital Output on 4-pin power connector
- Status LEDs: 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
- SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
- Power: 1 x 4-pin power connector

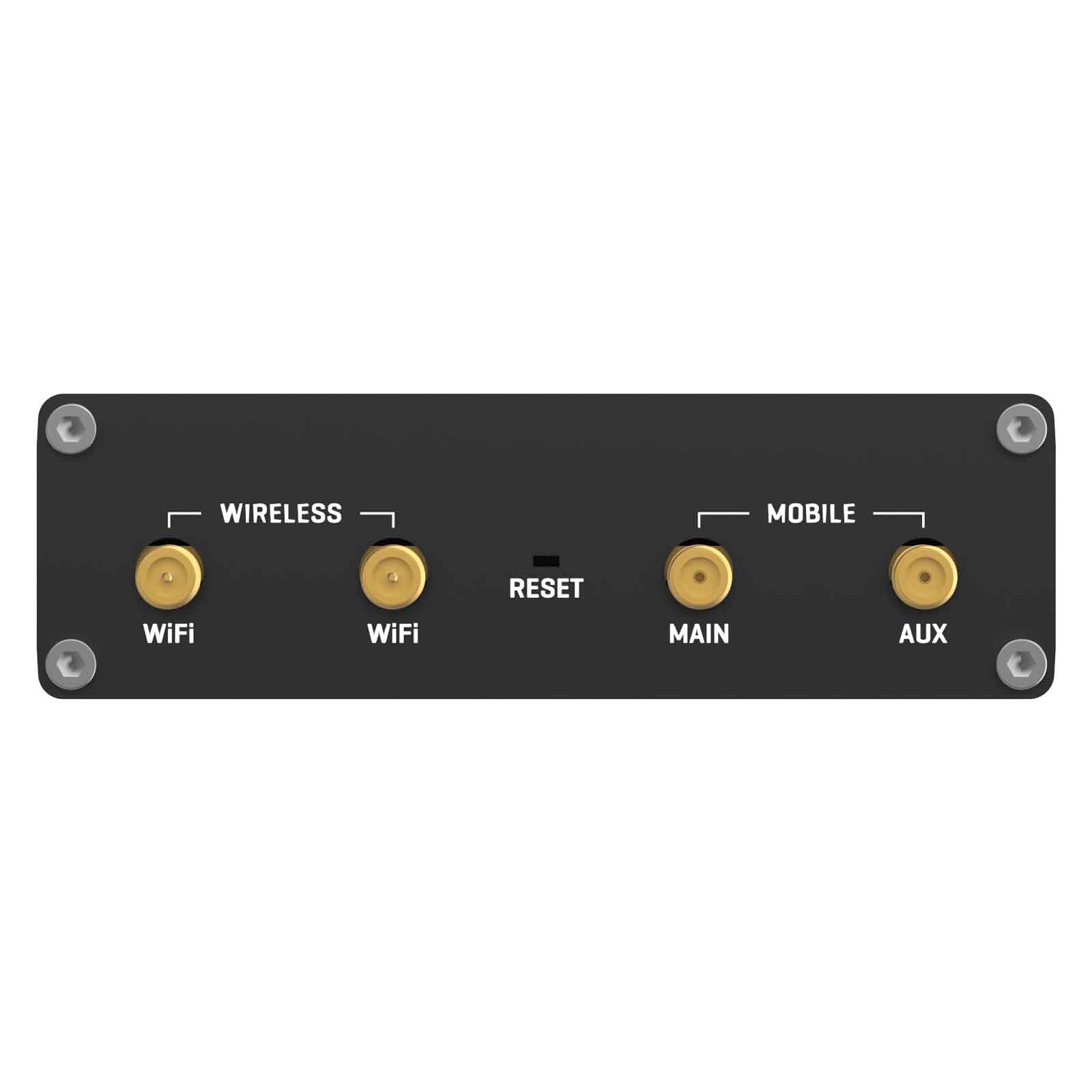

- Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
- Reset: Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material: Aluminium housing
- Dimensions (W x H x D): 93.2 x 100 x 30 mm
- Weight: 243 g
- Mounting options: DIN rail, flat surface placement
OPERATING ENVIRONMENT
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
REGULATORY & TYPE APPROVALS
- Regulatory: CE, UKCA, RCM, UCRF, EAC, WEEE, CB
