MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps. |
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
|
Black/White list (optional)
|
Operator black/white list |
|
Multiple PDN (optional)
|
Possibility to use different PDNs for multiple network access and services |
|
Band management
|
Band lock, Used band status display |
|
WIRELESS
|
|
|
Wireless mode
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
|
WiFi
|
WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter |
|
WiFi security
|
WPA2-Enterprise - PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation |
|
SSID
|
SSID stealth mode and access control based on MAC address |
|
WiFi users
|
up to 50 simultaneous connections |
|
Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
|
ETHERNET
|
|
|
WAN
|
1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
LAN
|
1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (Optional - BGP, OSPF v2, RIP v1/v2) |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT (optional) |
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring
|
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forward, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relayd |
|
QoS
|
Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover |
|
Load balancing
|
Balance your internet traffic over multiple WAN connections |
|
NetSnapper (optional)
|
Mobile connection management, data compression VPN client (not available in standard FW) |
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
WiFi security
|
WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation |
|
VLAN
|
Tag based VLAN separation |
|
Mobile quota control
|
Set up custom data limits for the SIM card |
|
WEB filter
|
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and server can be running simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec
|
IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE
|
GRE tunnel |
|
PPTP, L2TP
|
Client/Server services can run simultaneously |
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code. |
|
SSTP
|
SSTP client instance support |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from sever, automatic notification. |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
TR-069 (optional)
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
|
MQTT (optional)
|
MQTT Broker, MQTT publisher |
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
MODBUS
|
MODBUS TCP status/control |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Atheros Hornet, MIPS 24Kc, 400 MHz |
|
RAM
|
64MB, DDR2 |
|
FLASH memory
|
16MB SPI Flash |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
GPL package with built environment provided |
|
INPUT/OUTPUT
|
|
|
Input
|
1 x Digital Input |
|
Output
|
1 x Digital Output |
|
Events
|
SMS, EMAIL, RMS |
|
POWER
|

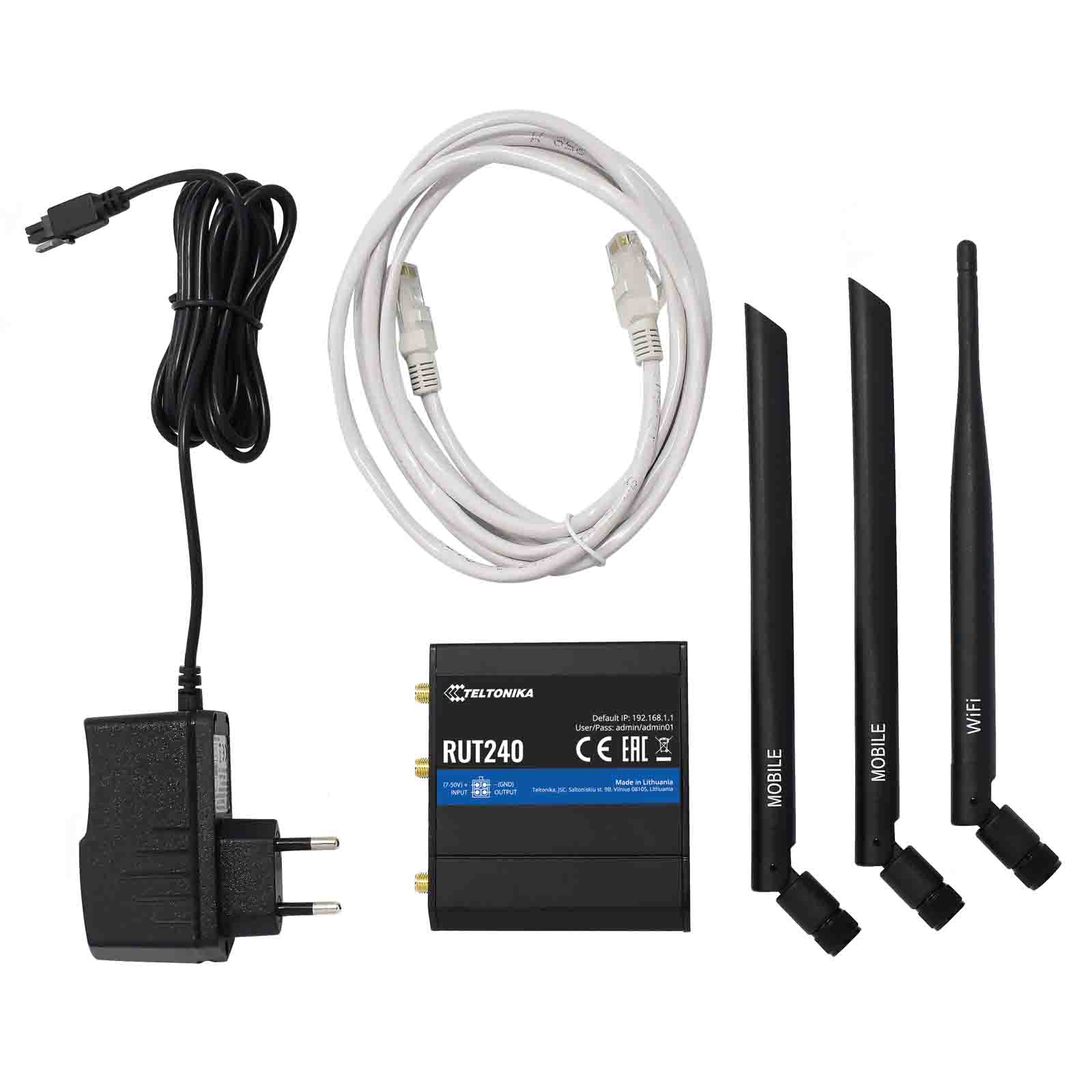

(zasilacz w zestawie) |
|
Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33VDC 10us max. |
|
PoE (passive)
|
Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at |
|
Power consumption
|
< 5 W |
|

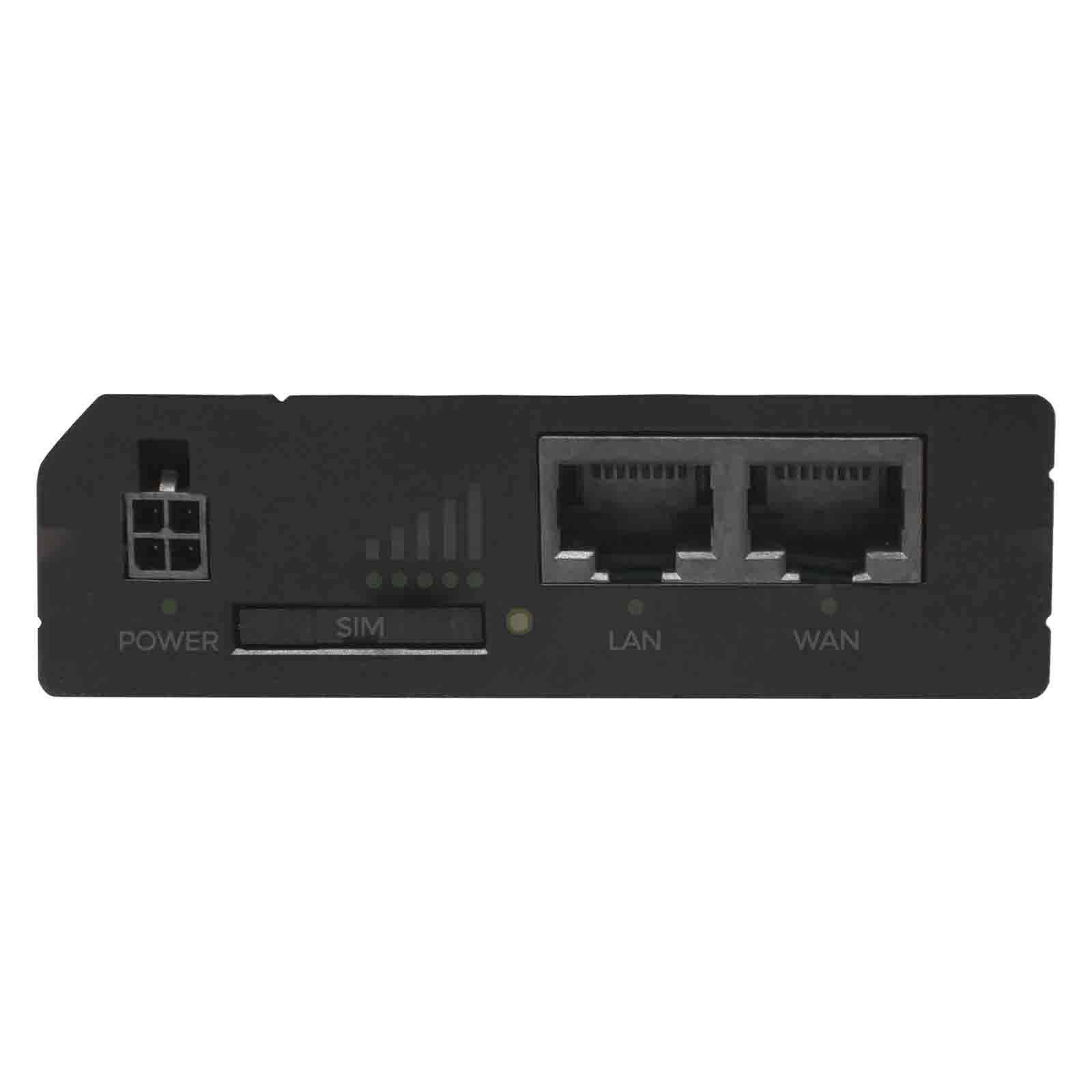

PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
|
Ethernet
|
2 x RJ45 ports, 10/100 Mbps |
|
Status LEDs
|
3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
|
SIM
|
1 x SIM slot (Mini SIM – 2FF, 2st form factor), 1.8V/3V, external SIM holder |
|
Power
|
4 pin DC connector with 1 x Digital input and 1 x Digital output |
|

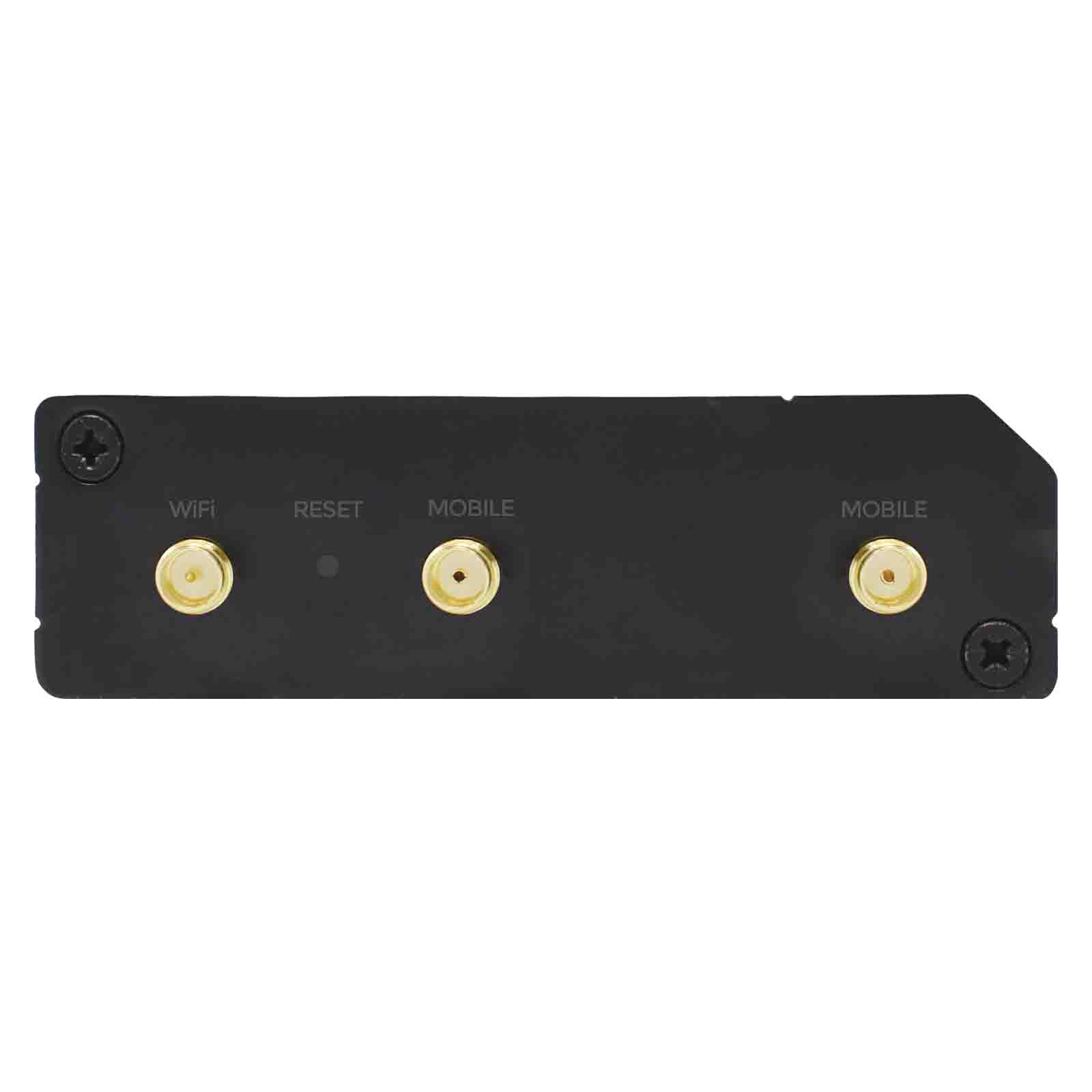

Anntenas
|
2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors |
|
Reset
|
Reset/restore to default button |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Aluminum housing, plastic panels |
|
Dimensions
|
83 mm x 74 mm x 25 mm (H x W x D) |
|
Weight
|
125 g |
|
Mounting options
|
Bottom and sideways DIN rail mounting slots |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10% to 90% non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
MTBF
|
310000 h |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE/RED, FCC, IC/ISED, EAC, RCM, PTCRB, RoHS, WEEE, Wi-Fi Alliance (in progress) |
|
Operator
|
AT&T (in progress), Verizon (in progress) |
|
Vehicle
|
ECE R10 (E-mark) (planed) |
|
EMI IMMUNITY
|
|
|
Standards
|
Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0 FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014) |
|
ESD
|
EN61000-4-2:2009 |
|
RS
|
EN 61000-4-3:2006 + A1:2008 + A2:2010 |
|
EFT
|
EN 61000-4-4:2012 |
|
Surge protection
|
EN 61000-4-5:2006 |
|
CS
|
EN 61000-4-6:2009 |
|
DIP
|
EN 61000-4-11:2004 |
|
RF
|
|
|
Standards
|
EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1 FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017) RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1 AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 |
|
SAFETY
|
|
|
Standards
|
IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013 AS/NZS 60950.1:2015 EN 50665:2017, EN 62311:2008 FCC 47 CFR Part 1 1.1310 RSS-102 Issue 5 (2015) |
