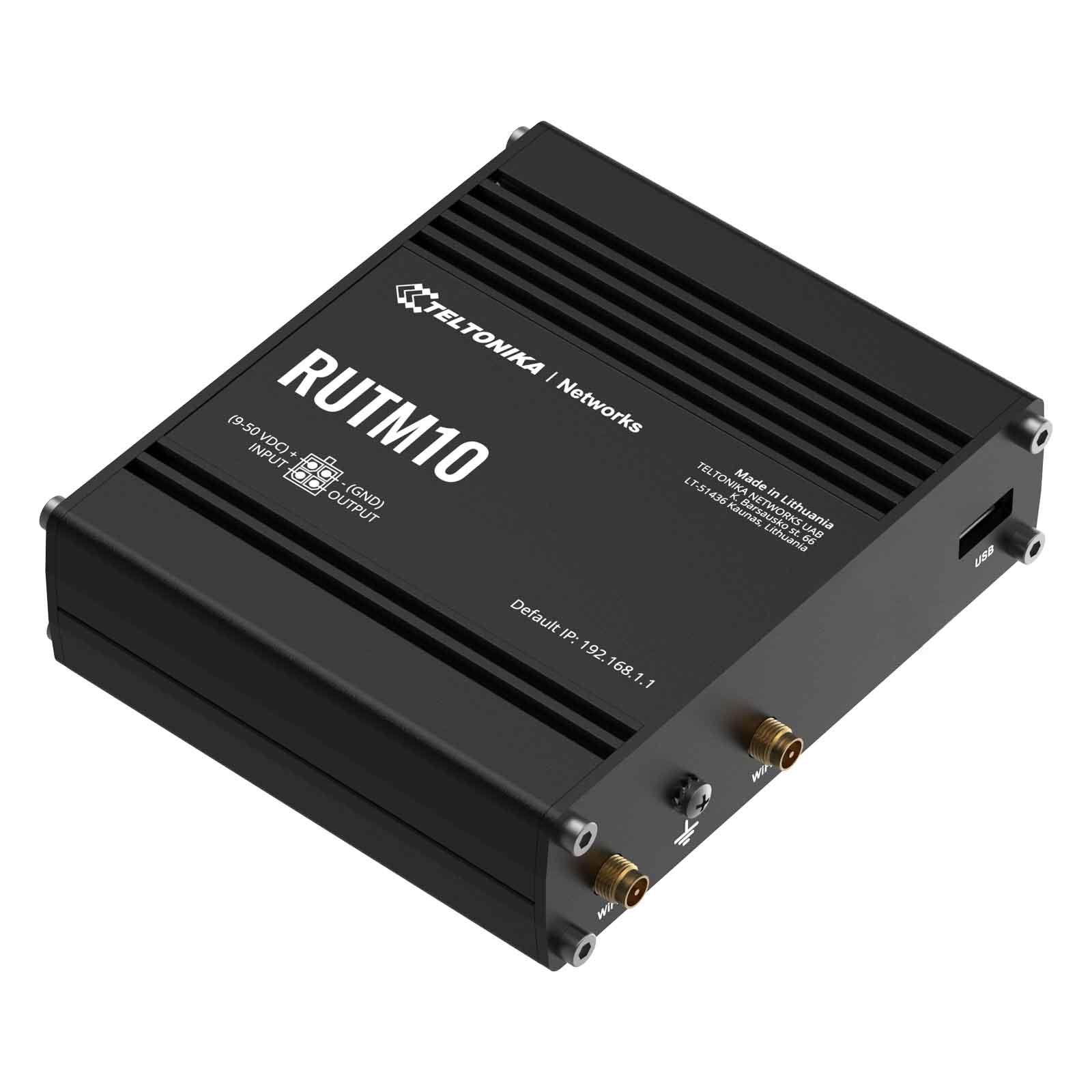

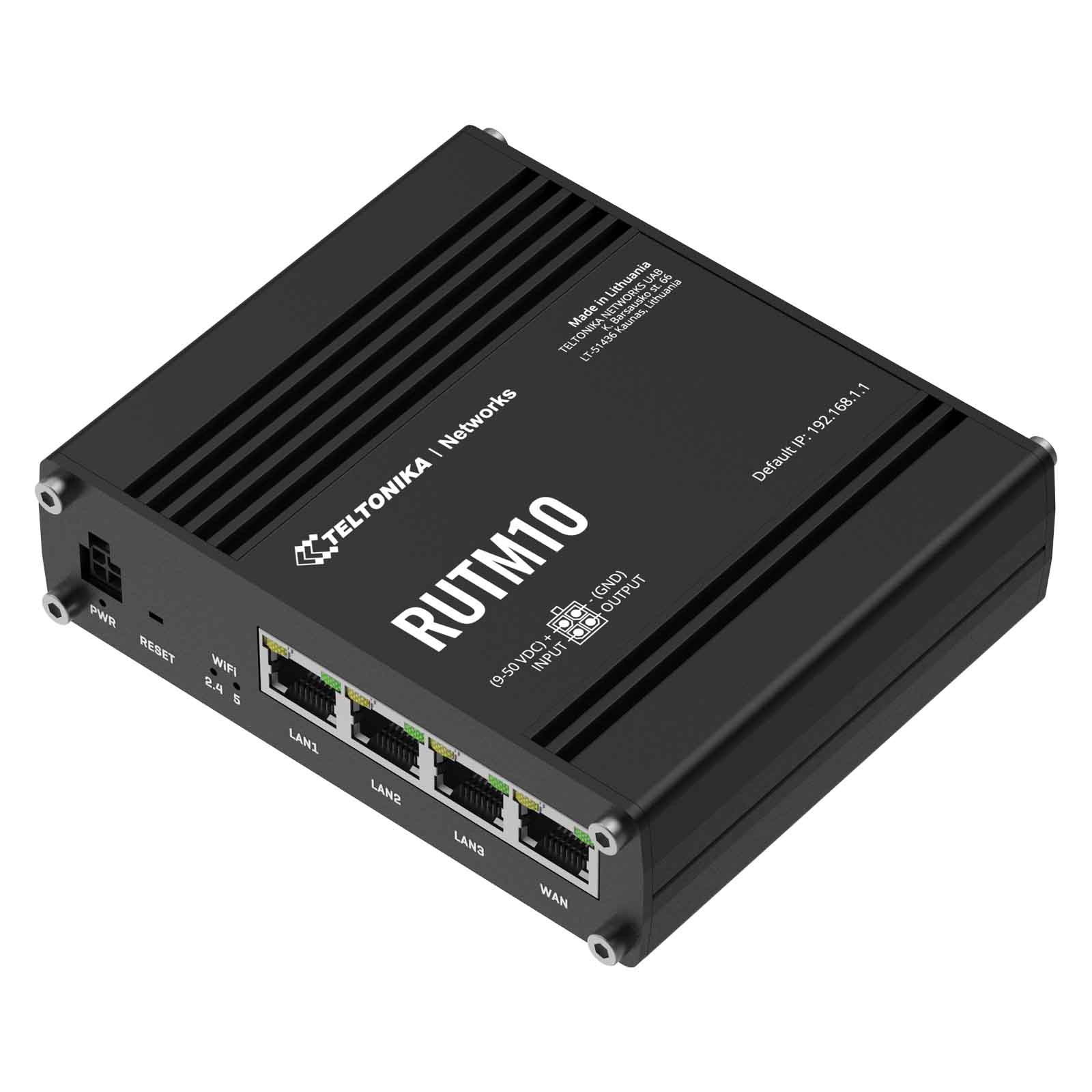

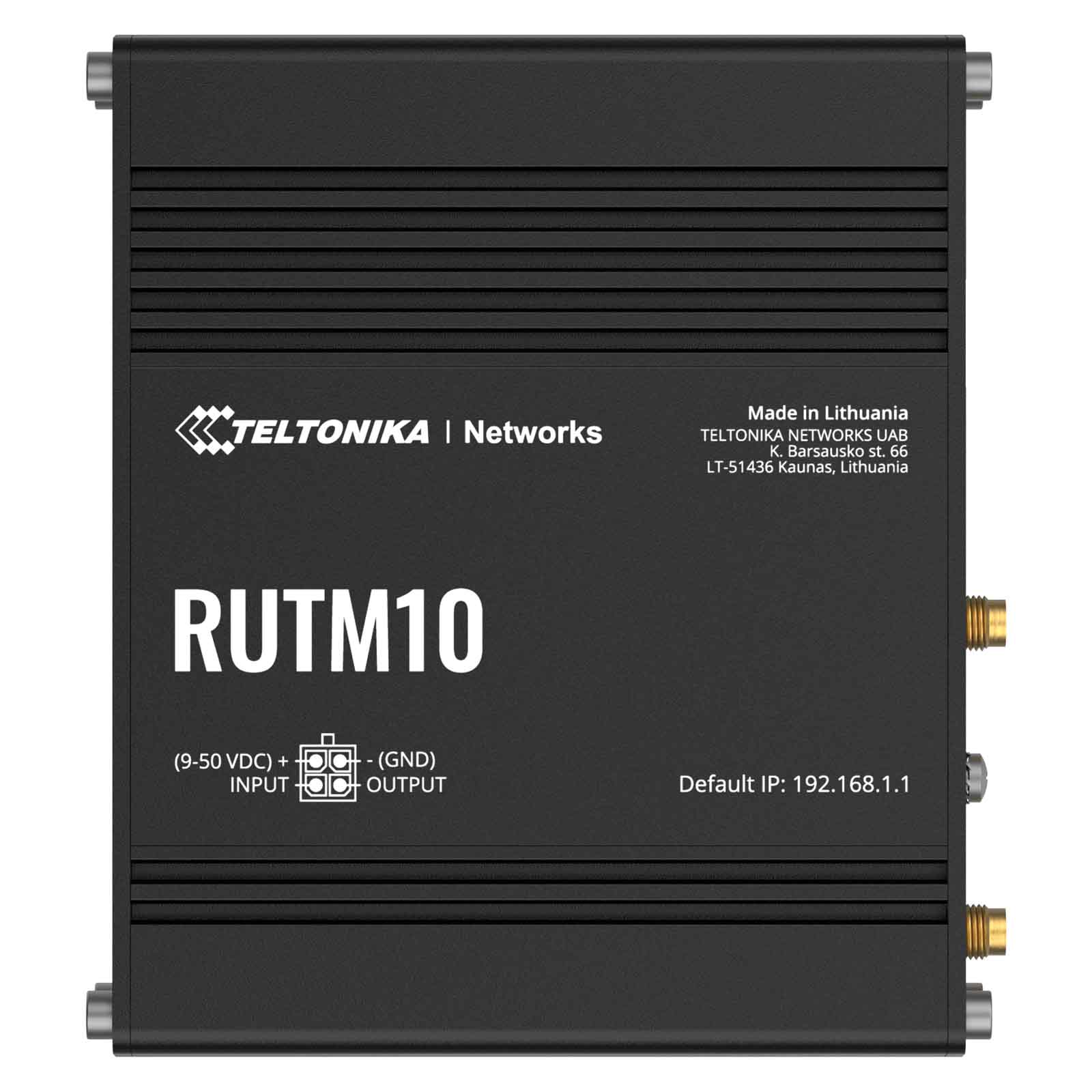

Teltonika RUTM10 router (RUTM10000000)
Teltonika RUTM10 (RUTM10000000) to solidny router przemysłowy wyposażony w 4x porty Gigabit Ethernet, dwuzakresowe WiFi 2.4GHz i 5GHz, wydajny procesor i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych. Router zapewnia wysoką prędkość transmisji danych i bezproblemowe przeglądanie Internetu. RUTM10 posiada wszystkie najnowsze funkcje bezpieczeństwa i możliwość zdalnego monitorowania i kontrolowania wykorzystywanych danych w biurze.
Teltonika RUTM10 to przewodowy router wyposażony w cztery gigabitowe porty RJ45 i opcje łączności Wi-Fi 5, dzięki czemu idealnie nadaje się do zastosowań wymagających zarówno połączeń przewodowych, jak i opcji bezprzewodowego dostępu do Internetu. RUTM10 może ustanowić sieć Wi-Fi mesh w ramach rozwiązań sieciowych, umożliwiając płynniejsze i bardziej niezawodne korzystanie z sieci bezprzewodowej, zapewniając jednocześnie wysoki poziom bezpieczeństwa dzięki obsłudze przez router sieci VPN, takich jak OpenVPN, IPsec, Wireguard i Tailscale.
RUTM10 może obsługiwać do 128 sieci VLAN opartych na tagach/portach w celu zwiększenia elastyczności sieci, a także wiele sieci VPN i protokołów komunikacyjnych M2M, które są szczególnie istotne w środowiskach przemysłowych.
Router posiada zaawansowany system RutOS oparty na OpenWrt, port USB, a także obsługuje Firewall, funkcję VPN oraz RMS. Jest to znakomite urządzenie przemysłowe, w którym nie jest wymagana łączność komórkowa ani Wi-Fi. Urządzenie zamknięte jest w aluminiowej obudowie.
Zawartość zestawu:
Najważniejsze cechy:
- 4x Gigabitowe porty Ethernet z prędkością do 1000 Mb/s
- Dwuzakresowe Wi-Fi z funkcją Mesh i szybkiego roamingu
- WiFi 2.4GHz i 5GHz, AC1200
- Dwurdzeniowy procesor MediaTek, 880 MHz i 256MB pamięci RAM
- 1x port USB 2.0
- Szeroki zakres napięć zasilania dla łatwiejszej integracji - 9-50V
- System zdalnego zarządzania Teltonika - RMS
- Obsługa wielu protokołów VPN, w tym Tailscale, OpenVPN, IPsec, ZeroTier i inne
- Obsługa do 128 sieci VLAN opartych na tagach/portach
- Obsługa wielu protokołów przemysłowych, w tym MQTT, Modbus, DNP3, DLMS
- Łatwy w użyciu, bezpieczny i funkcjonalny system operacyjny oparty na OpenWrt
WIRELESS
- Wireless mode: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
- Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
- SSID/ESSID: ESSID stealth mode
- Wi-Fi users: Up to 150 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter: Whitelist, blacklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
- WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN: 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
- VRF support: Initial virtual routing and forwarding (VRF) support
SECURITY
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA
- Supported modes: Client, Server
- Supported connection types: TCP
MODBUS
- Supported modes: Server, Client
- Supported connection types: TCP, USB
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol: HTTP(S), MQTT, Azure MQTT
- Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server
MQTT GATEWAY
- Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes: Station, Outstation
- Supported connection: TCP, USB
DLMS
- DLMS Support: DLMS - standard protocol for utility meter data exchange
- Supported modes: Client
- Supported connection types: TCP, USB
API
- Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA: Firmware update from server, automatic notification
- SSH: SSH (v1, v2)
- Email: Receive email message status alerts of various services
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC: Management API over HTTP/HTTPS
- RMS: Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things: Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot
- Cumulocity: Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot
- Azure IoT Hub: Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices
SYSTEM CHARACTERISTICS
- CPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
- RAM: 256MB, DDR3
- FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash
FIRMWARE / CONFIGURATION
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA: Update FW
- RMS: Update FW/configuration for multiple devices at once
- Keep settings: Update FW without losing current configuration
- Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
- GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
USB
- Data rate: USB 2.0
- Applications: Samba share, USB-to-serial
- External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
INPUT / OUTPUT
- Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
- Output: 1 x Digital Output, Open collector output, max output 50 V, 300 mA
- Events: Email, RMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
POWER
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
- PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
- Power consumption: Idle: < 3.51 W, Max: < 8.65 W

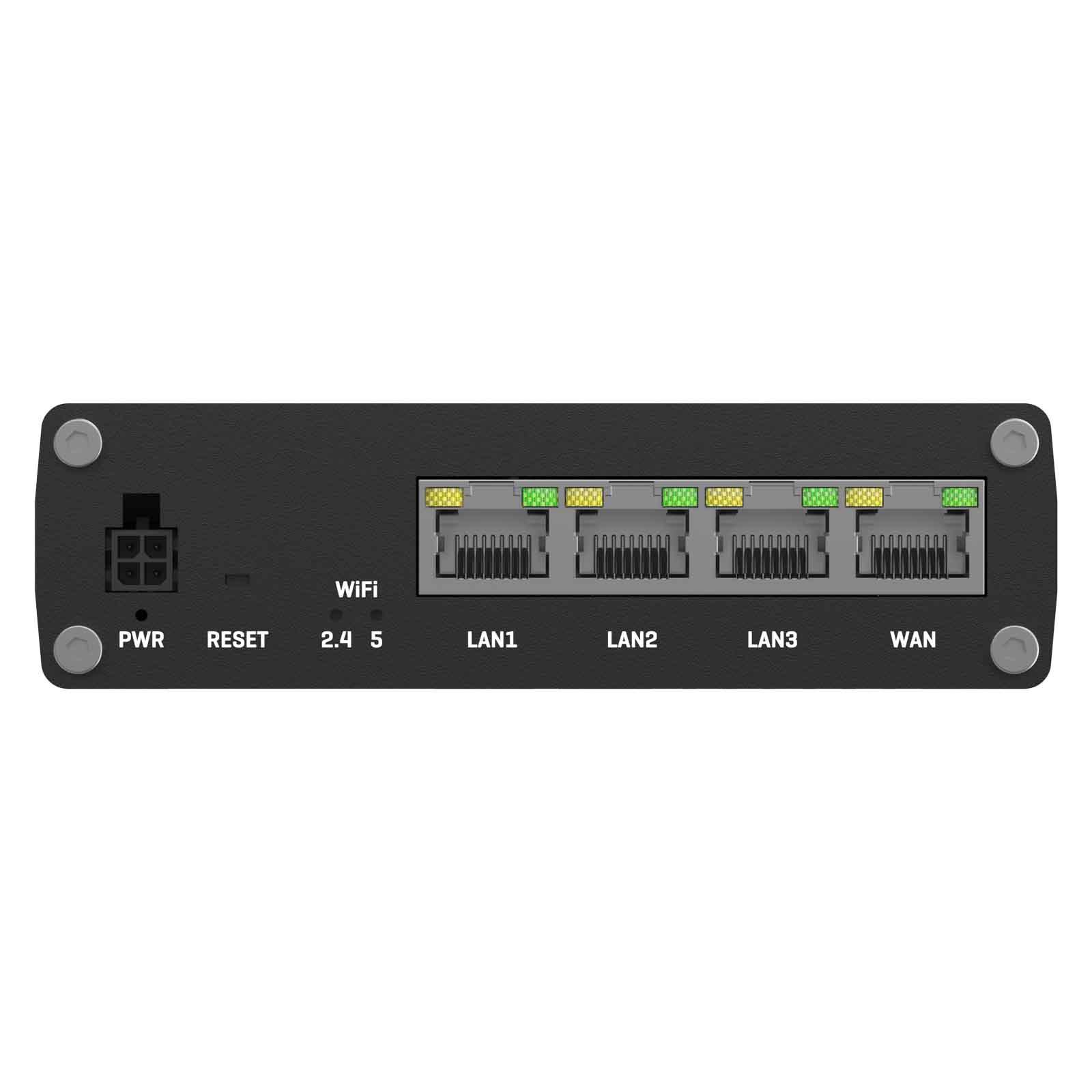

PHYSICAL INTERFACES
- Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
- I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LEDs: 8 x LAN status, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
- Power: 1 x 4-pin power connector

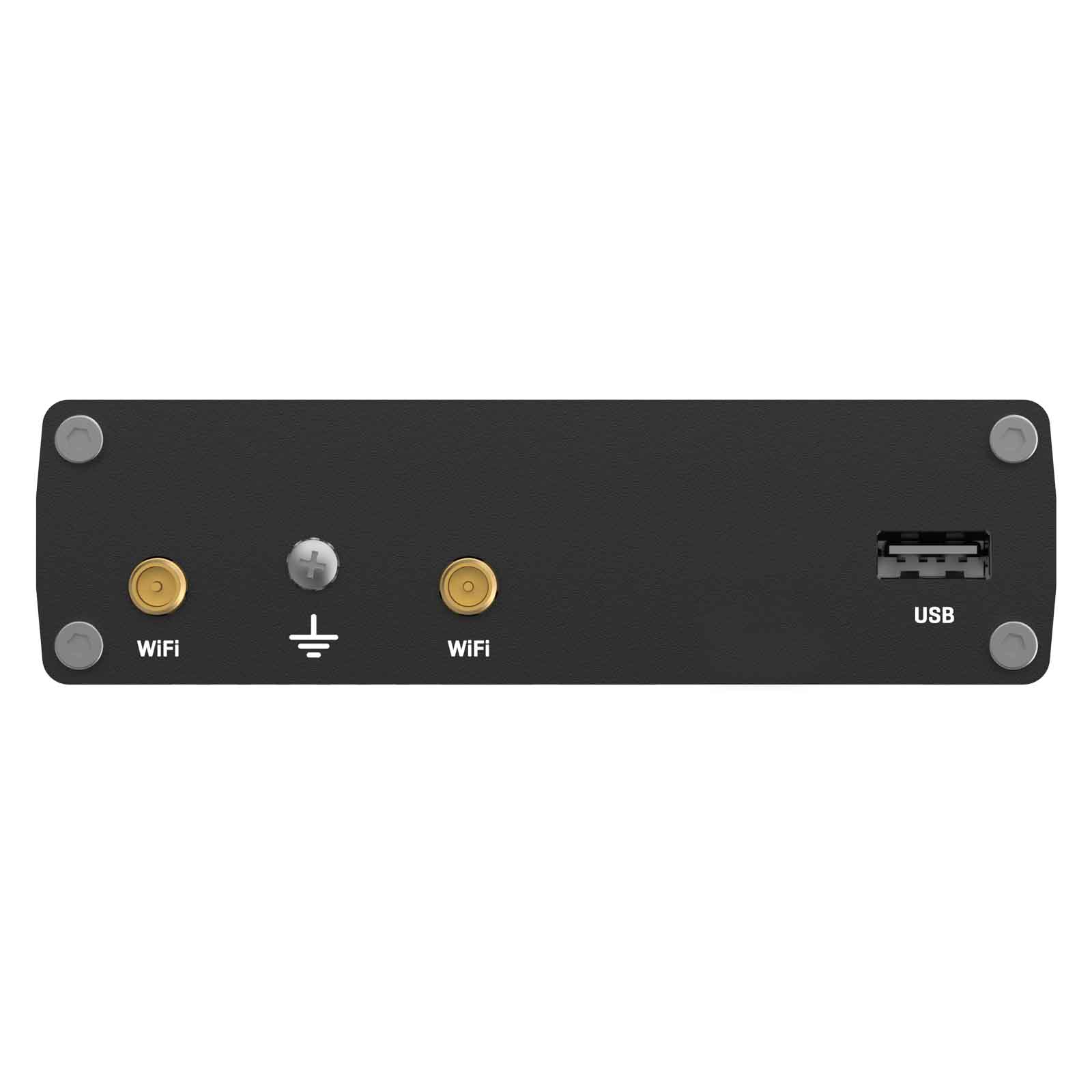

- Antennas: 2 x RP-SMA for Wi-Fi
- USB: 1 x USB A port for external devices
- Reset: Reboot/User default reset/Factory reset button
- Other: 1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material: Anodized aluminum housing and panels
- Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
- Weight: 359 g
- Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
- Operating temperature: -40 °C to 75 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
REGULATORY & TYPE APPROVALS
EMC EMISSIONS & IMMUNITY
- Standards: EN 55032:2015 + A11:2021, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-3 V2.1.1, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1
- ESD: EN 61000-4-2:2009
- Radiated Immunity: EN IEC 61000-4-3:2020
- EFT: EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
- CS: EN 61000-4-6:2014
- DIP: EN IEC 61000-4-11:2020
RF
- Standards:
- EN 301 908-1 V15.2.1
- EN 301 908-2 V13.1.1
- EN 301 908-13 V13.2.1
- EN 300 328 V2.2.2
- EN 301 893 V2.1.1
- EN 300 440 V2.2.1
SAFETY
- Standards: CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
- RCM: AS/NZS 62368.1:2022
- CB: IEC 62368-1:2018
