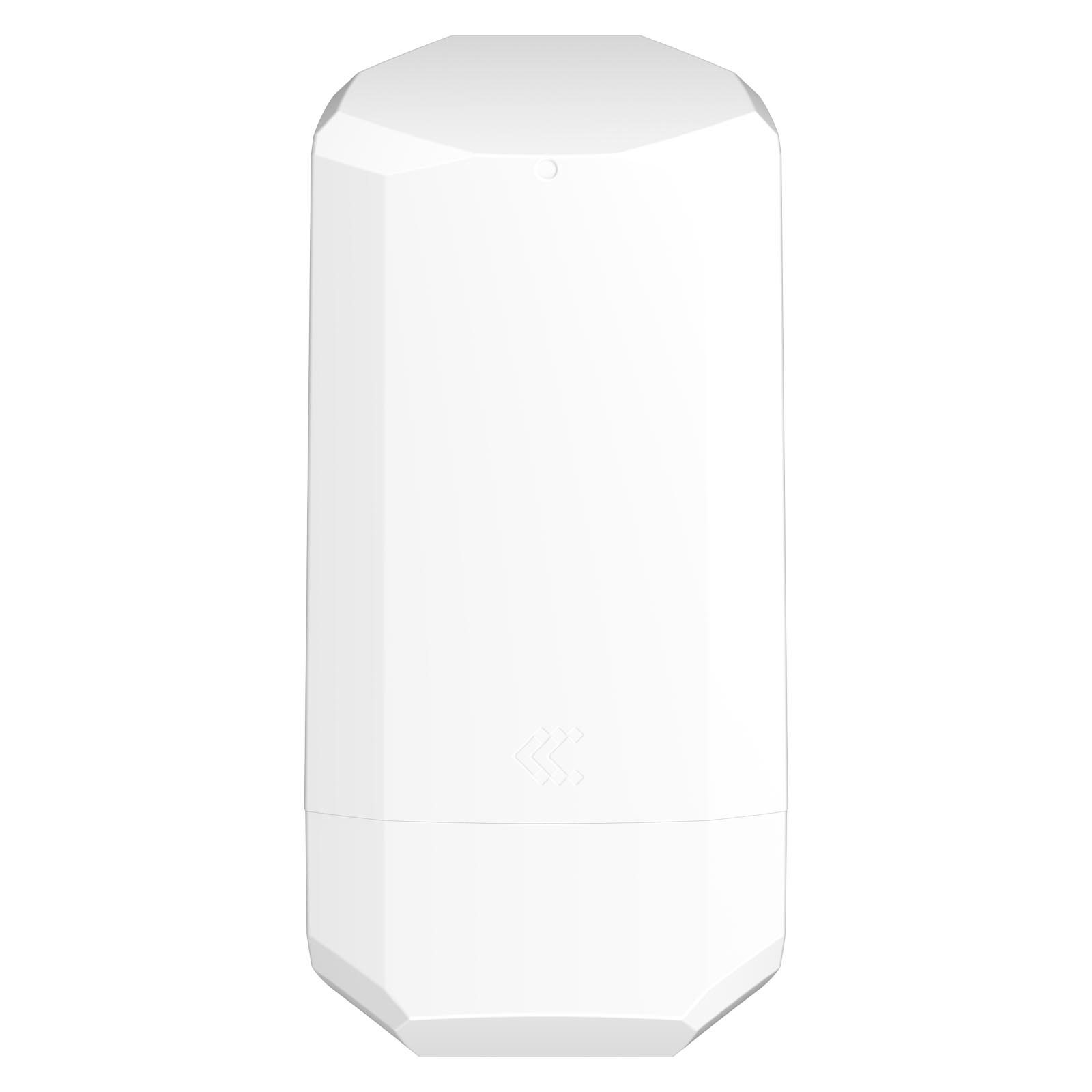

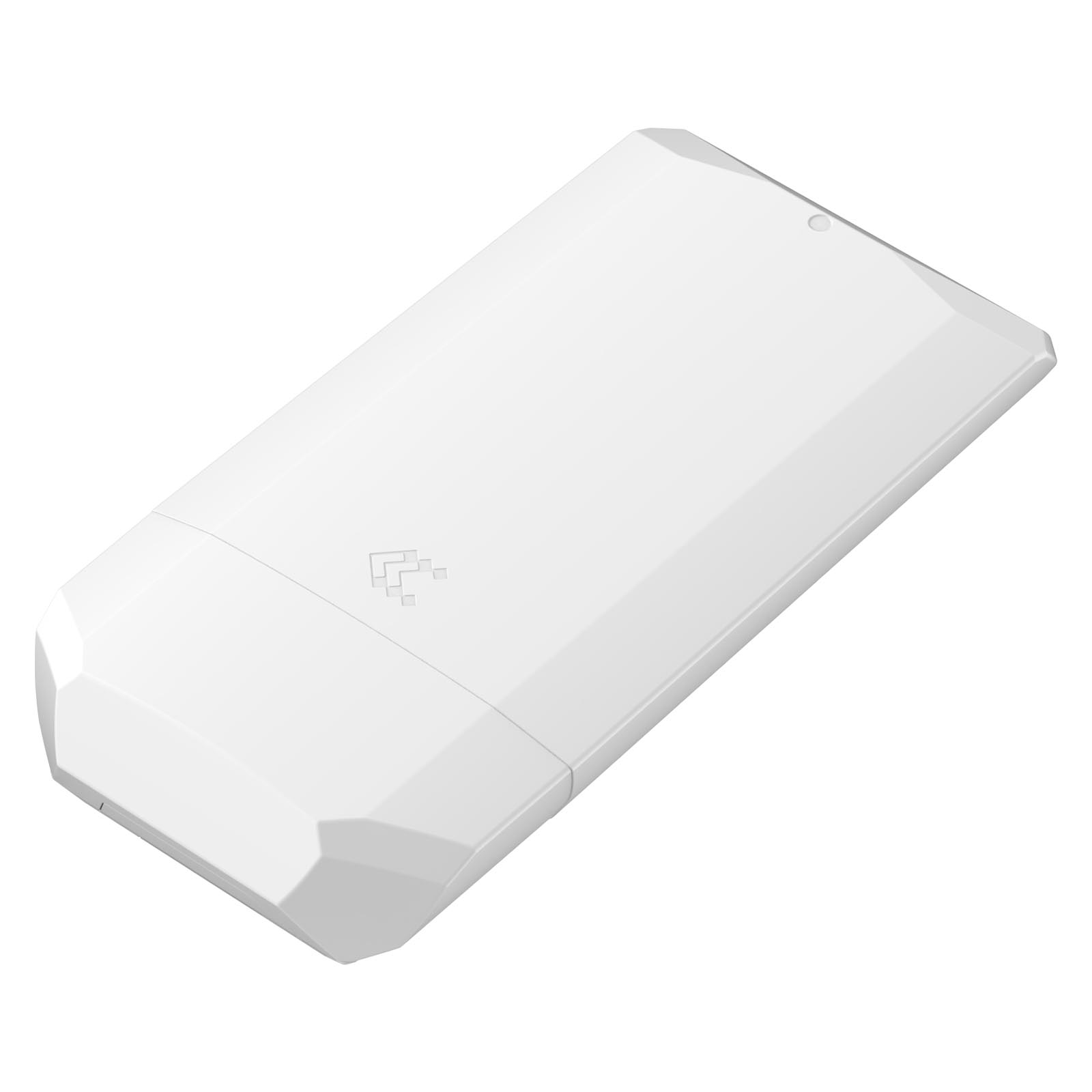

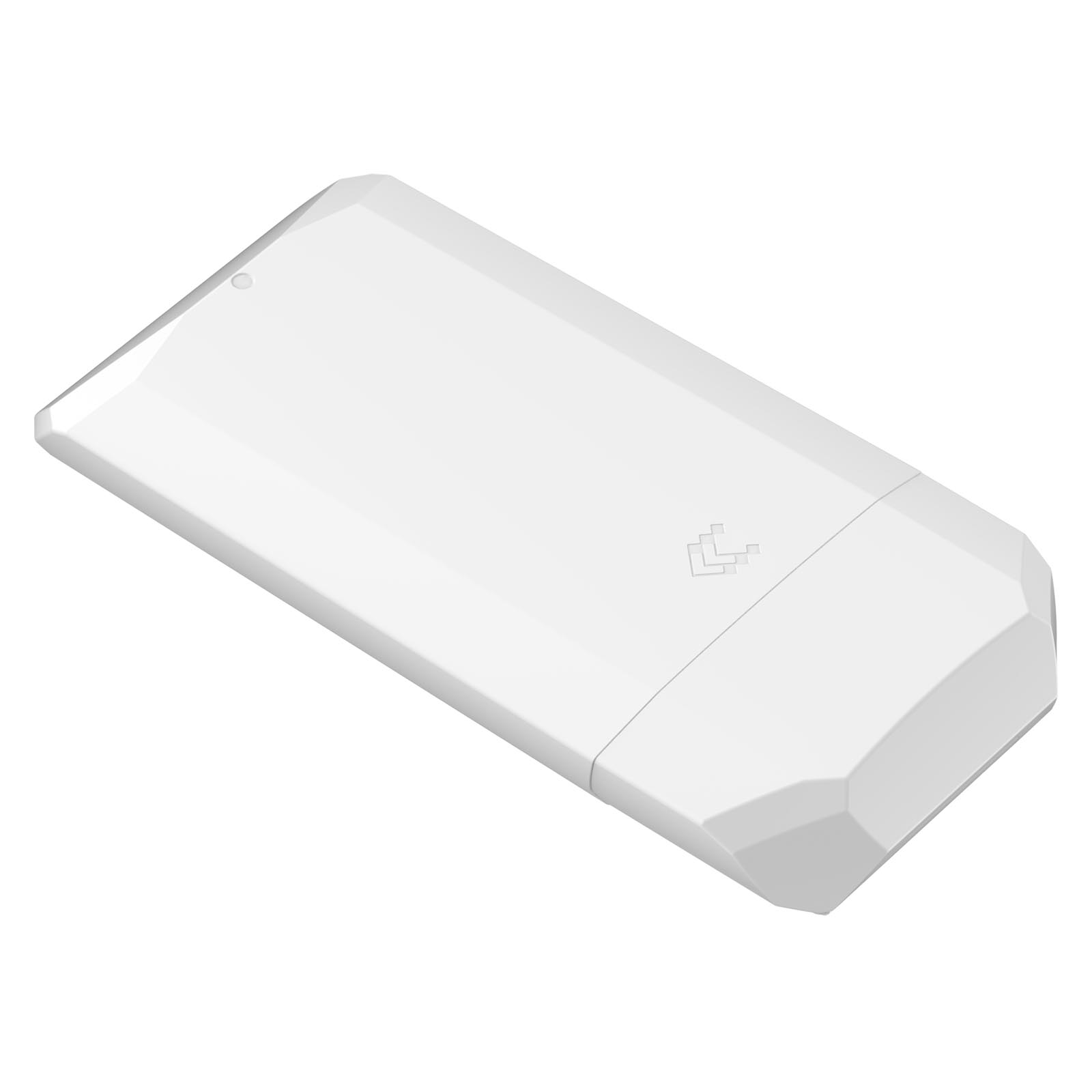

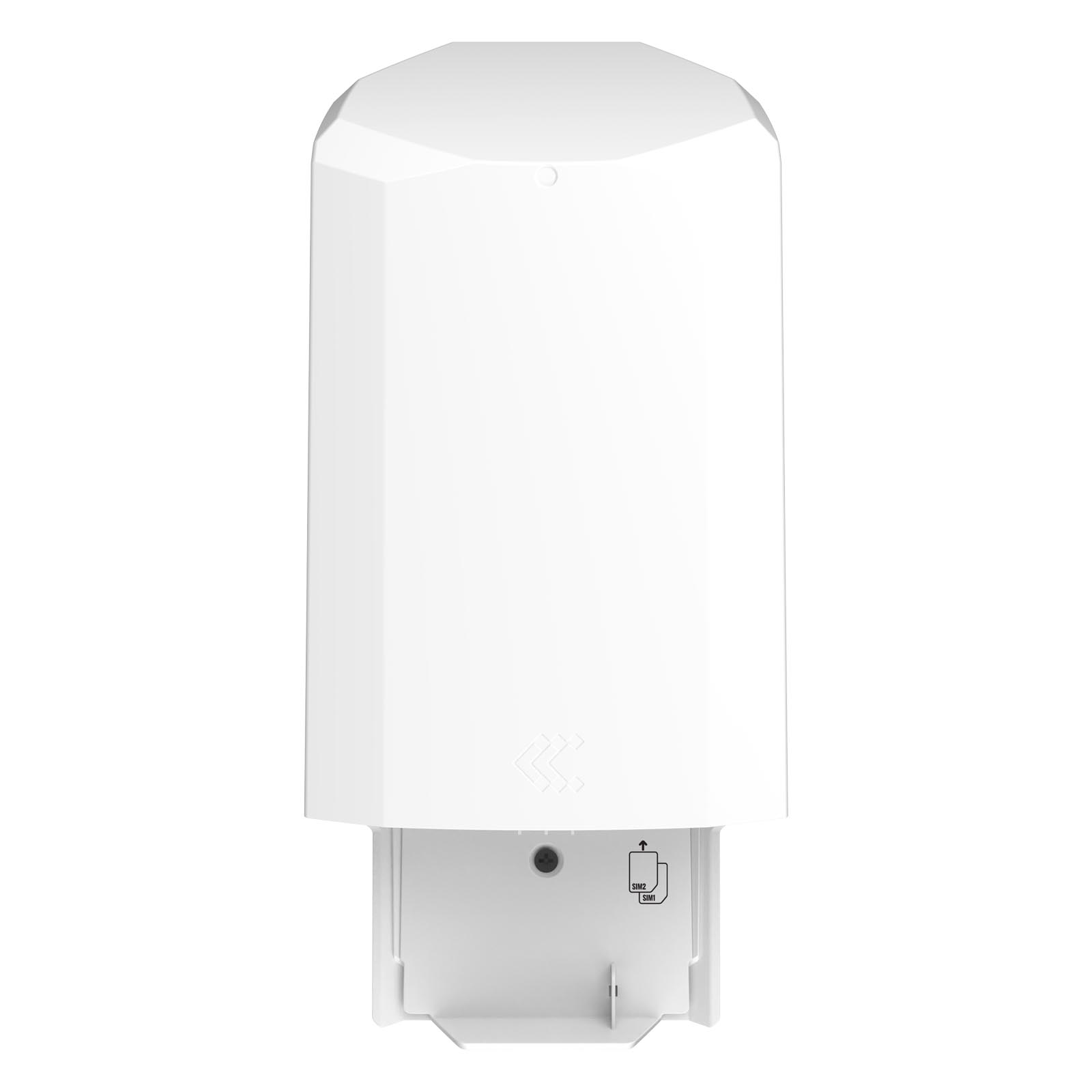

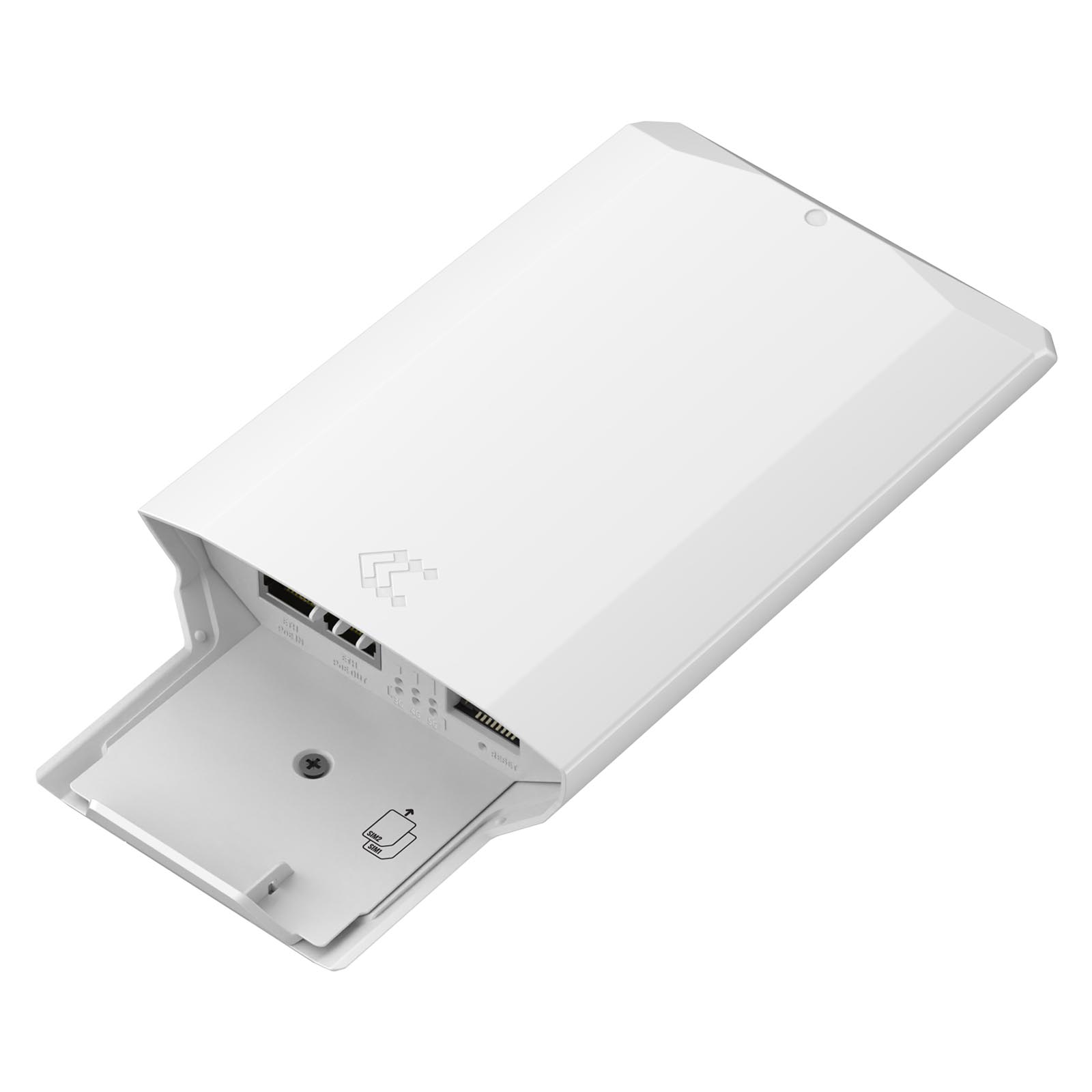

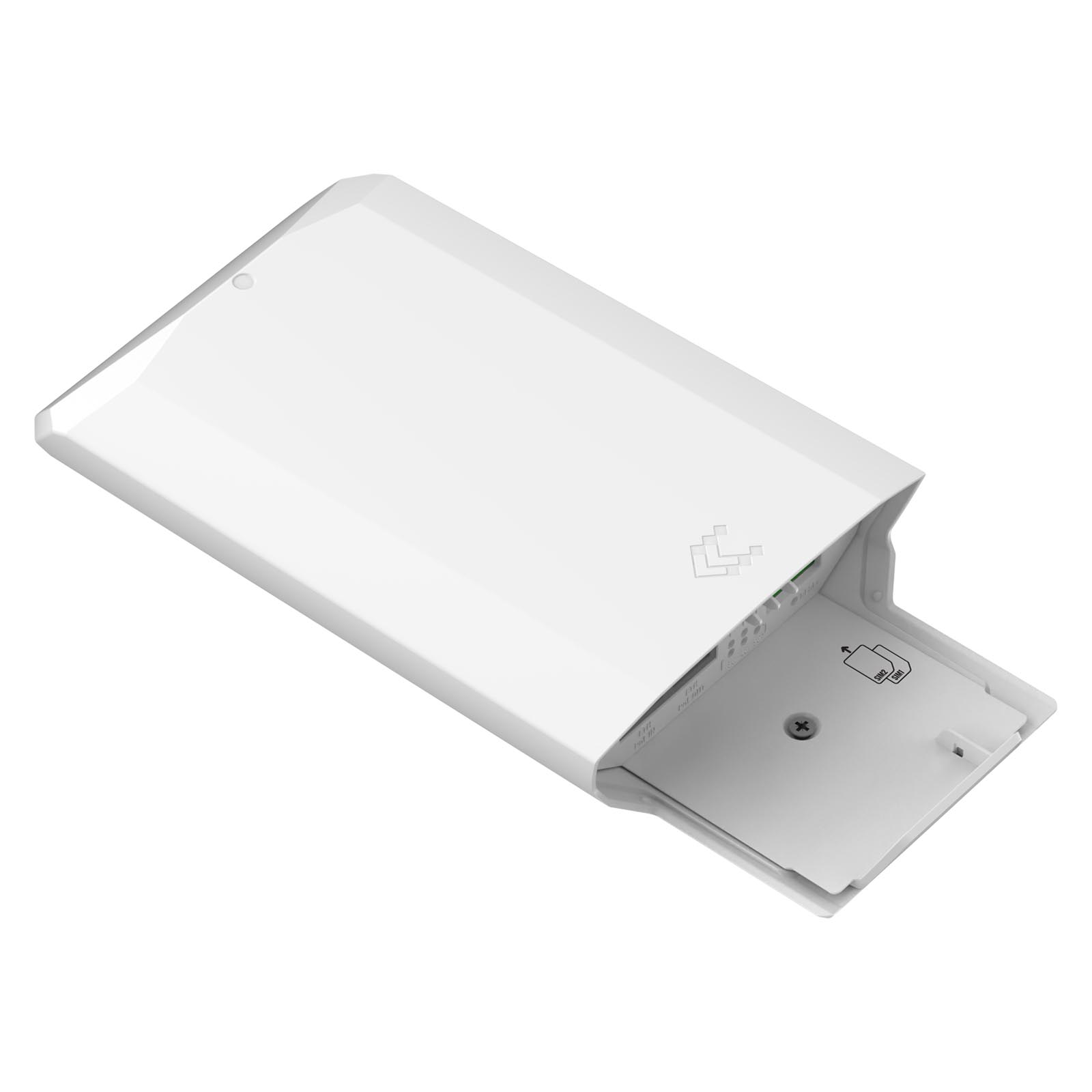

Teltonika OTD500 zewnętrzny router 5G

Teltonika OTD500 (OTD500100000) to zewnętrzny router 5G LTE.

Teltonika OTD500 to router zewnętrzny wyposażony w dedykowaną i trwałą obudowę z tworzywa sztucznego IP55 oraz zintegrowany uchwyt montażowy, dzięki czemu ten zewnętrzny router 5G jest łatwy do wdrożenia i może wytrzymać zewnętrzne warunki środowiskowe. Poza tym, ten router zewnętrzny jest wyposażony w łączność 5G Sub-6Ghz SA/NSA, kompatybilność z RMS dla możliwości zdalnego zarządzania oraz 2x porty PoE-in/out Ethernet 1000 Mb/s.

OTD500 to wytrzymały router zewnętrzny 5G stworzony z myślą o niezawodnej łączności w wymagających środowiskach. Jego obudowa o stopniu ochrony IP55 jest odporna na trudne warunki, a zintegrowany uchwyt montażowy umożliwia szybką i bezproblemową instalację. Podwójna karta SIM i eSIM z automatycznym przełączaniem zapewniają wyjątkową elastyczność i redundancję sieci. Porty Gigabit Ethernet z PoE-in i PoE-out upraszczają konfigurację, łącząc zasilanie i dane w jednym kablu. W pełni kompatybilny z RMS, OTD500 oferuje łatwe zdalne zarządzanie, dzięki czemu idealnie nadaje się do rozwiązań łączności zewnętrznej.

Urządzenie zapewnia bezpieczną i stabilną łączność internetową dla aplikacji przemysłowych z wykorzystaniem oprogramowania RutOS i funkcji bezpieczeństwa, takich jak OpenVPN, IPsec, Firewall, Hotspot, kontrola SMS i obsługa RMS.

Teltonika OTD500 (OTD500100000) obsługuje pasma:

5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78
4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71
4G (LTE-TDD): B38, B40, B41, B42, B43
3G: B1, B5, B8

Zawartość zestawu:

Router OTD500

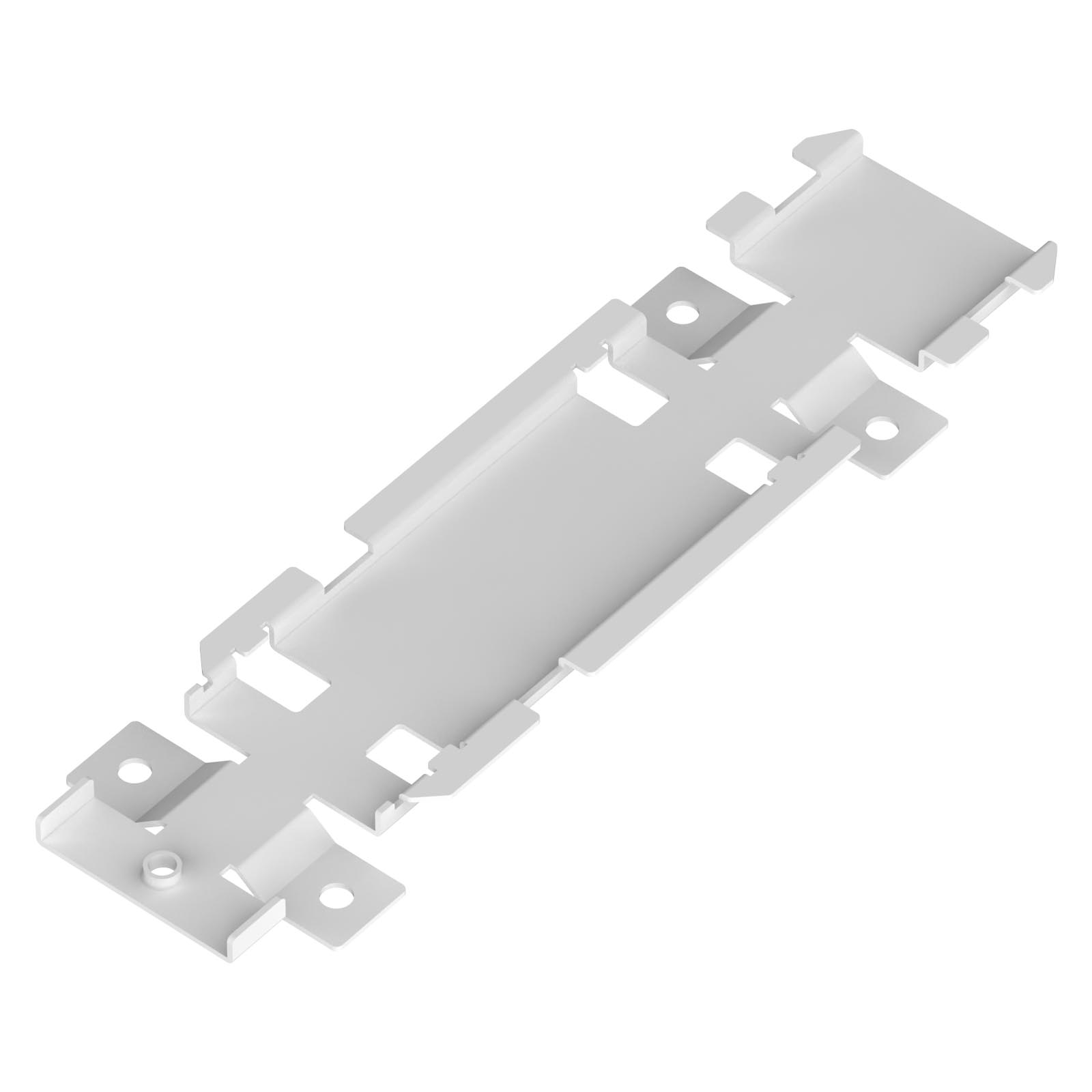

Uchwyt
QSG (Przewodnik szybkiego startu)
Pudełko do pakowania

Najważniejsze cechy:

Wytrzymała obudowa IP55 do zastosowań zewnętrznych
Łączność 5G, 4G kat. 19, 3G
Dual SIM z automatycznym przełączaniem awaryjnym i innymi scenariuszami przełączania
eSIM - Płynna łączność dzięki eSIM SGP.22
2x porty Gigabit Ethernet 10/100/1000 Mb/s (1x PoE-in, 1x PoE-out)
Zasilanie PoE-In standard 802.3af/at

Mobile

Mobile module: 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
3GPP Release: Release 16
eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list: Operator black/white list (by country or separate operators)
Band management: Band lock, Used band status display
SIM idle protection service: When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Framed routing: Framed routing: support an IP network behind 5G UE

Ethernet

ETHERNET: 2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE IN

PoE ports: 1 x PoE In
PoE standards: 802.3af/at

POE OUT

PoE ports: 1 x PoE Out
PoE standards: 802.3af Alternative B
PoE Max Power per Port (at PSE): 15 W Max (power supply unit dependent)

Network

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page: View all your Firewall statistics, rules, and rule counters
Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup: VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing: Balance Internet traffic over multiple WAN connections
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS: Possibility to mount remote file system via SSH protocol
VRF support: Initial virtual routing and forwarding (VRF) support
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security

Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
TPM: Identification and authentication module, TPM 2.0 standard
SSL certificate generation: Let's Encrypt and SCEP certificate generation methods
802.1x: Port-based network access control server

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub suppor
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

Supported modes: Client, Server
Supported connection types: TCP

MODBUS

Supported modes: Server, Client
Supported connection types: TCP
Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes: Station, Outstation
Supported connection: TCP

DLMS

DLMS Support: DLMS - standard protocol for utility meter data exchange
Supported modes: Client
Supported connection types: TCP
COSEM: Allows to scan meter COSEM objects for automatic detection and configuration

API

Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
Email: Receive email message status alerts of various services
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU: MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM: 256 MB, DDR3
FLASH storage: 16 MB serial NOR flash, 256 MB serial NAND flash

Firmware / Configuration

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager: The Package Manager is a service used to install additional software on the device

Power

Connector: RJ45 Socket
Input voltage range: 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Input voltage range for PoE: 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
Power consumption: Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W

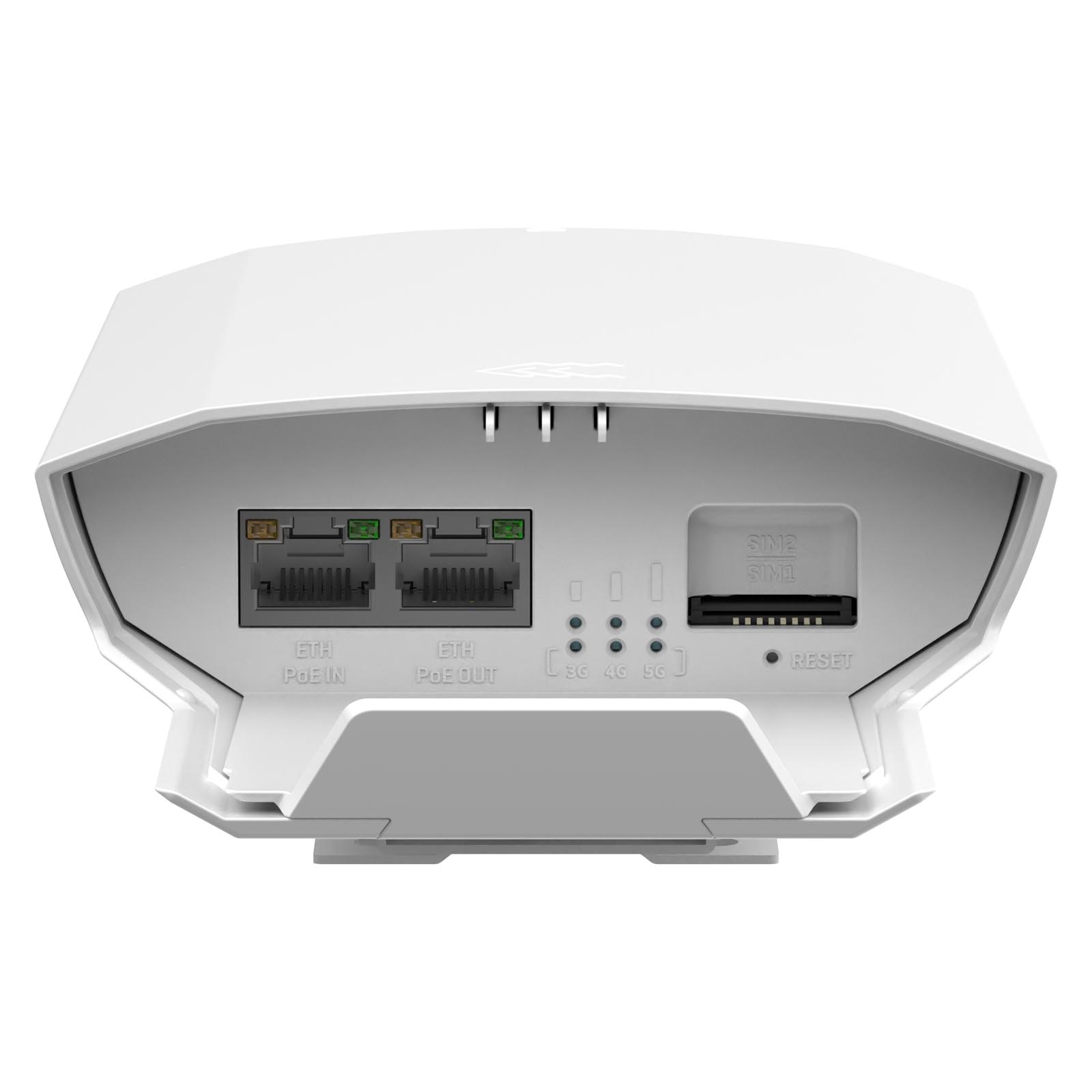

Physical Interfaces

Ethernet: 2 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power: RJ45, PoE In, 42.5 – 57.0 VDC
Antennas: 4 x internal antennas
Antennas specifications: 4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional
Reset: Reboot/User default reset/Factory reset button

Physical Specification

Casing material: Plastic (PC+ASA)
Dimensions (W x H x D): 110 x 49.30 x 235 mm
Weight: 385 g
Mounting options: Mounting bracket (for vertical flat surface or pole mounting)

Operating Environment

Operating temperature: -40 °C to 55 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP55

Regulatory & Type Approvals

Regulatory: CE, UKCA, RCM, CB, EAC, UCRF, WEEE

EMC Emissions & Immunity

Standards: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2: 2019 + A1:2021; EN 61000-3-3: 2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1
ESD: EN 61000-4-2:2009
Radiated Immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2020

RF Standards:
