MODULE
|
|
Name
|
Teltonika TM2500 |
Technology
|
GSM/GPRS/GNSS/BLUETOOTH |
GNSS
|
|
GNSS
|
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
Receiver
|
33 channel |
Tracking sensitivity
|
-165 dBM |
Accuracy
|
< 2.5m CEP |
Hot start
|
< 1 s |
Warm start
|
< 25 s |
Cold start
|
< 35 s |
CELLULAR
|
|
Technology
|
GSM |
2G bands
|
Quad-band 850 / 900 / 1800 / 1900 MHz |
Data transfer
|
GPRS Multi-Slot Class 12(up to 240 kbps) |
Data support
|
SMS (text/data) |
POWER
|
|
Supply voltage range
|
10 - 30 V DC with overvoltage protection |
Back-up battery
|
3.7 V 45 mAh |
Power consumption
|
At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
BLUETOOTH
|
|
Specification
|
4.0 + LE |
Supported peripherals
|
Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
OBD INTERFACE
|
|
Data
|
K-Line, CAN bus data |
Data reading
|
Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
INTERFACE
|
|
Connection
|

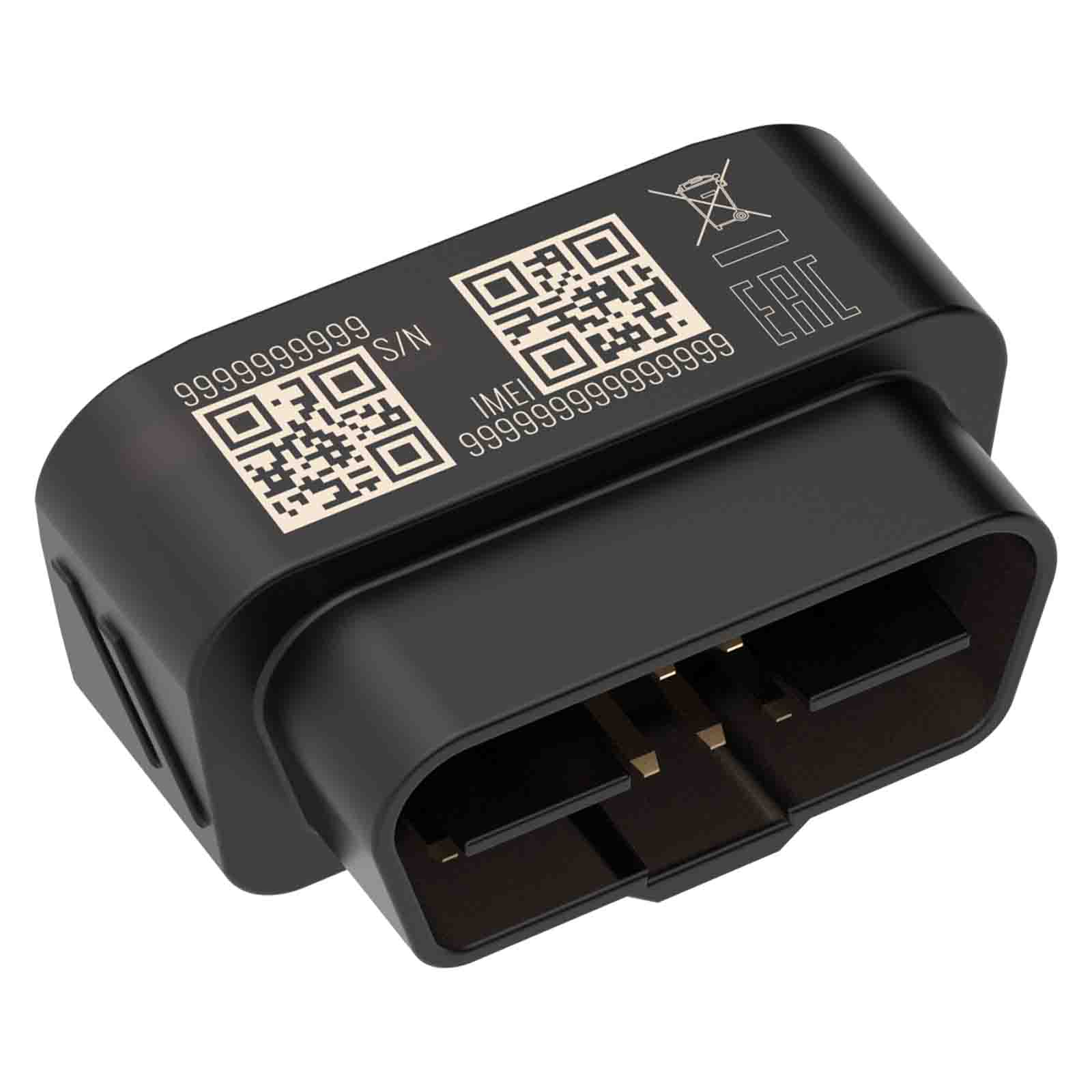

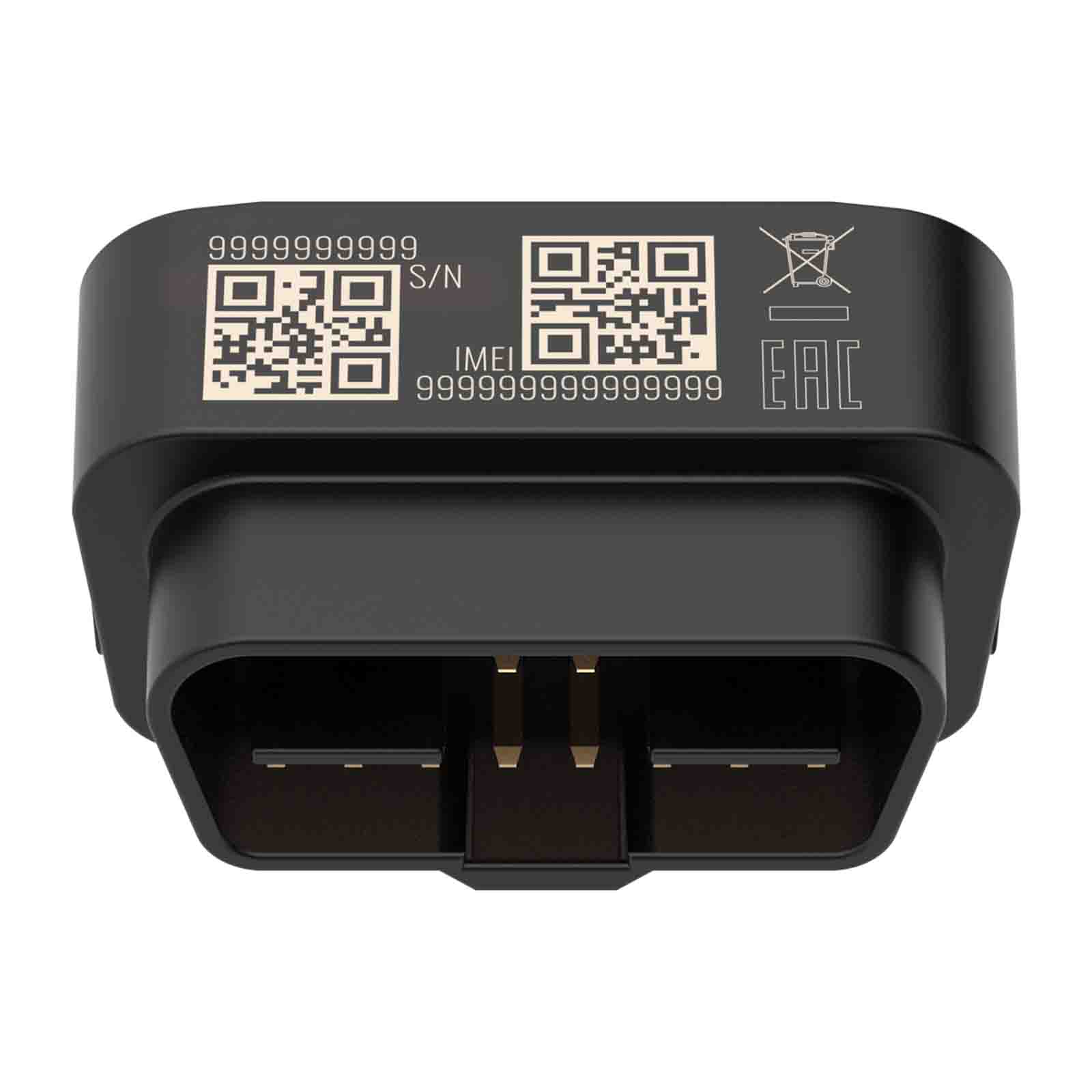

OBDII Socket |
GNSS antenna
|
Internal High Gain |
Cellular antenna
|
Internal High Gain |
USB
|
2.0 Micro-USB |
LED indication
|
2 status LED lights |
SIM
|
Nano-SIM |
Memory
|
128MB internal flash memory |
PHYSICAL SPECIFICATION
|
|
Dimensions
|
52.6 x 29.1 x 26 mm (L x W x H) |
OPERATING ENVIRONMENT
|
|
Operating temperature (without battery)
|
-40 °C to +85 °C |
Storage temperature (without battery)
|
-40 °C to +85 °C |
Operating humidity
|
5% to 95% non-condensing |
Ingress Protection Rating
|
IP41 |
Battery charge temperature
|
+10 °C to +45 °C |
Battery discharge temperature
|
-20 °C to +60 °C |
Battery storage temperature
|
-20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
FEATURES
|
|
Sensors
|
Accelerometer |
Scenarios
|
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
Sleep modes
|
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
Configuration and firmware update
|
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
SMS
|
Configuration, Events, Debug |
GPRS commands
|
Configuration, Debug |
Time Synchronization
|
GPS, NITZ, NTP |
Fuel monitoring
|
OBD II |
Ignition detection
|
Accelerometer, External Power Voltage, Engine RPM |
