MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
|
SIM switch
|
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned) |
|
Status
|
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply, scheduled SMS (planned), SMPP (planned) |
|
Black/White list
|
Operator black/white list |
|
Multiple PDN (planed)
|
Possibility to use different PDNs for multiple network access and services |
|
Band management
|
Band lock, Used band status display |
|
APN
|
Auto APN |
|
Bridge mode
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
WIRELESS
|
|
|
Wireless mode
|
802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
|
WiFi security
|
WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
ESSID
|
ESSID stealth mode |
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
|
ETHERNET
|
|
|
WAN
|
1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
LAN
|
3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
BLUETOOTH
|
|
|
Bluetooth 4.0
|
Bluetooth low energy (LE) for short range communication |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
|
NetSnapper (optional)
|
Mobile connection management, data compression VPN client (not available in standard FW) |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring
|
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forwards, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd |
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
|
Load balancing
|
Balance Internet traffic over multiple WAN connections |
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY
|
|
|
Authetication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN
|
Port based and tag based VLAN separation |
|
Mobile quota control
|
Custom data limits for both SIM cards |
|
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec
|
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
|
GRE
|
GRE tunnel |
|
PPTP, L2TP
|
Client/Server instances can run simultaneously |
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
DMVPN
|
Method of building scalable IPsec VPNs |
|
SSTP
|
SSTP client instance support |
|
MODBUS
|
|
|
Modbus TCP slave
|
ID range 1-255 |
|
Modbus TCP master
|
Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped) |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from server, automatic notification |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC (planned)
|
Management API over HTTP/HTTPS |
|
MQTT
|
MQTT Broker, MQTT publisher |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Quad-core ARM Cortex A7, 717 MHz |
|
RAM
|
256 MB, DDR3 |
|
FLASH memory
|
256 MB SPI Flash |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices at once |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
SDK package with build environment provided |
|
LOCATION TRACKING
|
|
|
GNSS
|
GPS, GLONASS, BeiDou, Galileo and QZSS |
|
Coordinates
|
GNSS coordinates via WebUI, SMS, TAVL, RMS |
|
NMEA
|
NMEA 0183 |
|
Server software
|
Supported server software: TAVL, RMS |
|
Mobile Network Geolocation
|
Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
|
Geofencing
|
Configurable multiple geofence zones |
|
USB
|
|
|
Data rate
|
USB 2.0 |
|
Applications
|
Samba share, custom scripts (planned) |
|
External devices
|
Possibility to connect external HDD, flash drive, additional modem, printer (planned) |
|
Storage formats
|
FAT, FAT32, NTFS |
|
INPUT/OUTPUT
|
|
|
Input
|
1x Digital Input |
|
Output
|
1x Digital Output |
|
Events
|
SMS, Email, RMS |
|
POWER
|
|
|
Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
|
PoE (passive)
|
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards |
|
Power consumption
|
16 W Max |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
|

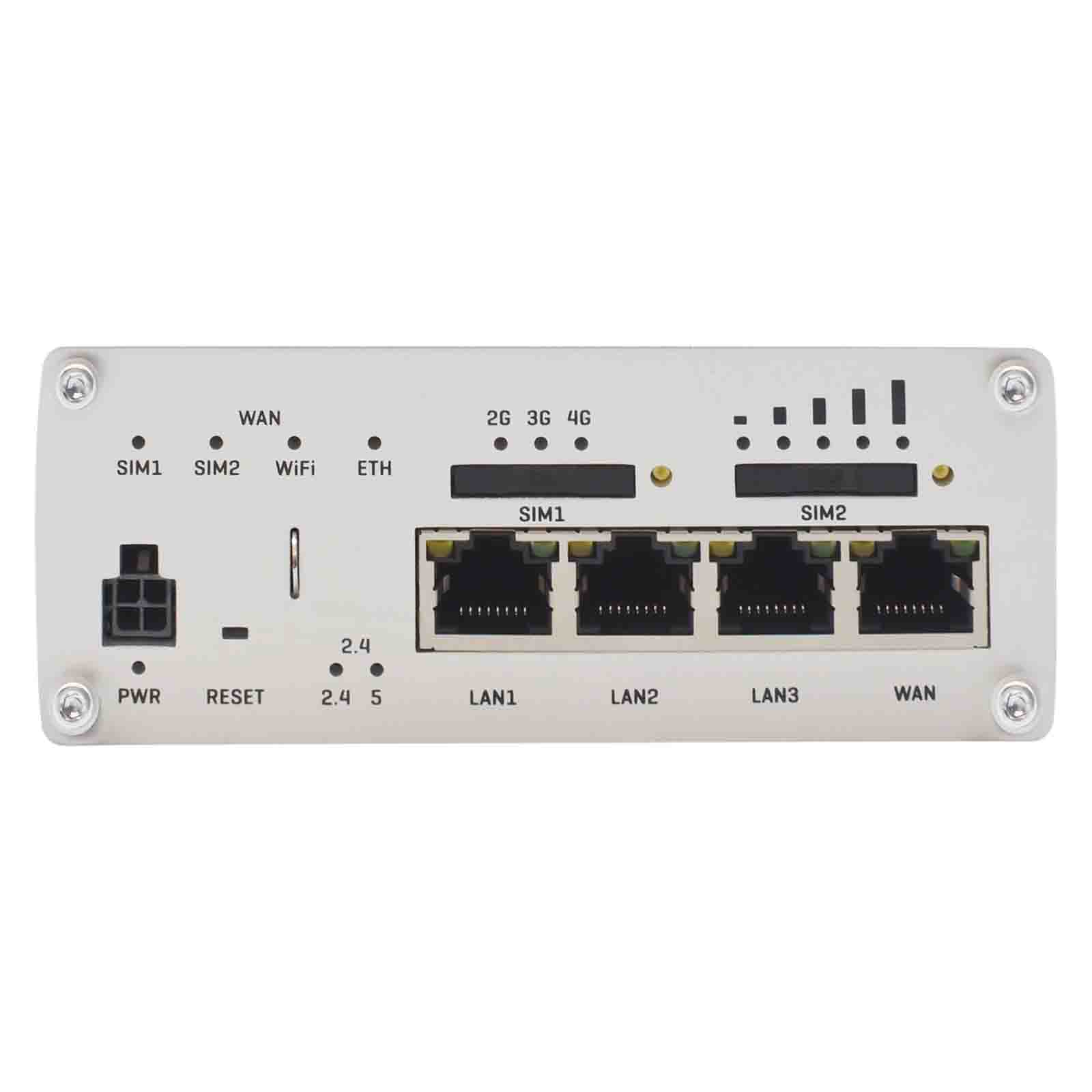

Ethernet
|
4x RJ45 ports, 10/100/1000 Mbps |
|
I/Os
|
1 Digital Input, 1 Digital Output on 4 pin power connector |
|
Status LEDs
|
3x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 4x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs |
|
SIM
|
2x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
|
Power
|
4 pin DC connector |
|

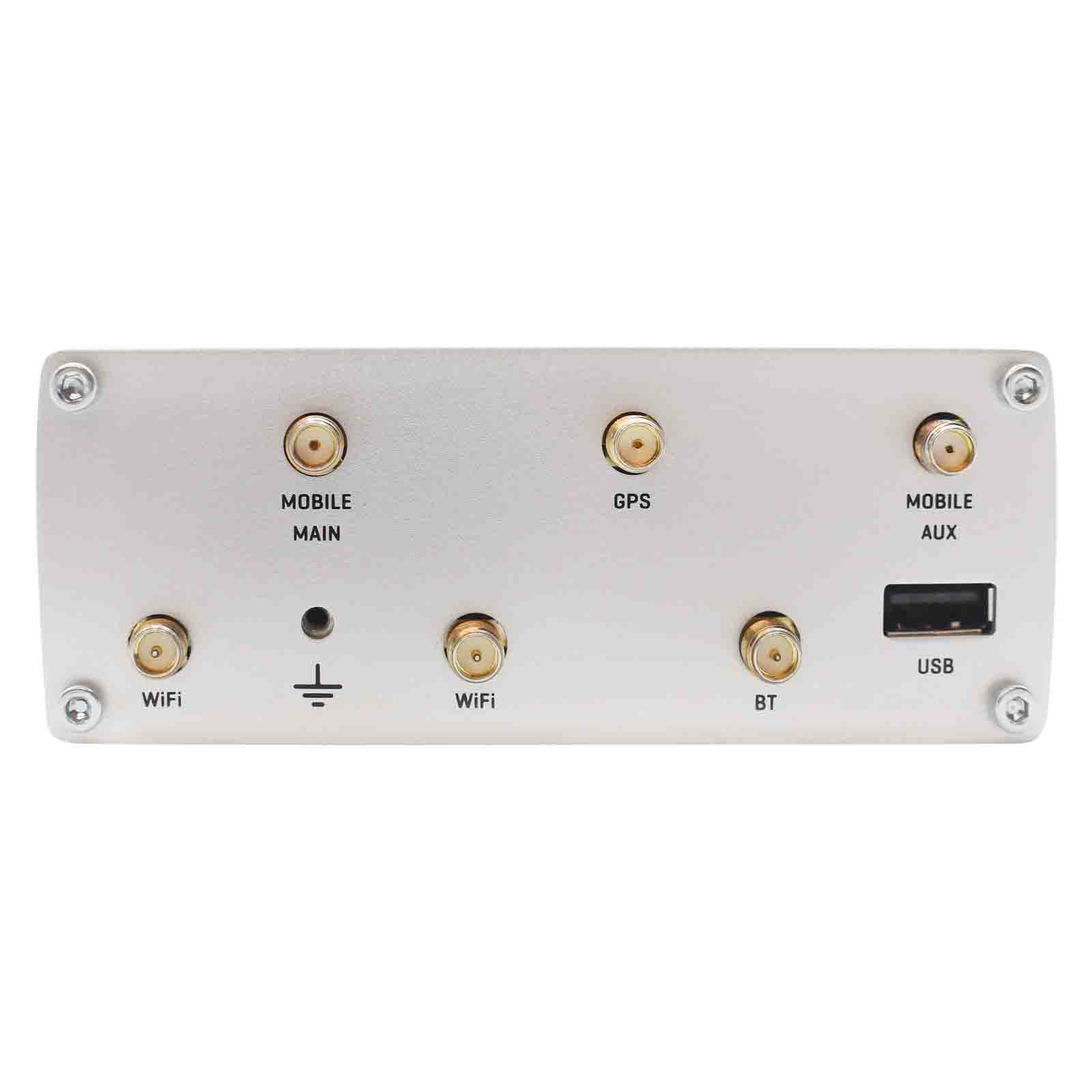

Antennas
|
2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
|
USB
|
USB A port for external devices |
|
Reset
|
Factory reset button |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Full aluminium housing |
|
Dimensions
|
95 x 115 x 44 mm (L x W x H) |
|
Weight
|
456 g |
|
Mounting options
|
DIN rail (can be mounted on two sides), flat surface placement |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 C to 75 C |
|
Operating humidity
|
10 % to 90 % non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory & Type Approvals
|
CE/RED, RoHS, REACH |
|
Vehicle
|
ECE R10 (E-mark) |
|
EMI IMMUNITY
|
|
|
Standards
|
EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0 |
|
ESD
|
EN 61000-4-2:2009 |
|
RS
|
EN 61000-4-3:2006+A1:2008+A2:2010 |
|
EFT
|
EN 61000-4-4:2012 |
|
Surge protection
|
EN 61000-4-5:2014 |
|
CS
|
EN 61000-4-6:2014 |
|
DIP
|
EN 61000-4-11:2004 |
|
RF
|
|
|
Standards
|
ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1 |
|
SAFETY
|
|
|
Standards
|
IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
