MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
SIM switch
|
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
|
Black/White list
|
Operator black/white list |
|
Band management
|
Band lock, Used band status display |
|
APN
|
Auto APN |
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN |
|
Multiple PDN (optional)
|
Possibility to use different PDNs for multiple network access and services (not available in standard FW) |
|
WIRELESS
|
|
|
Wireless mode
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
|
WiFi security
|
WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
SSID
|
SSID stealth mode and access control based on MAC address |
|
WiFi users
|
Up to 100 simultaneous connections |
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
|
ETHERNET
|
|
|
WAN
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
LAN
|
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forward, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd |
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover |
|
Load balancing
|
Balance your internet traffic over multiple WAN connections |
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN
|
Port and tag based VLAN separation |
|
Mobile quota control
|
Set up custom data limits for both SIM cards |
|
WEB filter
|
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
Secure Boot
|
Cryptographic integrity check of the each system boot process (available on device with special order code RUT950U072C0). |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and server can be running simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec
|
IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE
|
GRE tunnel |
|
PPTP, L2TP
|
Client/Server services can run simultaneously |
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code |
|
DMVPN
|
Method of building scalable IPsec VPNs |
|
SSTP
|
SSTP client instance support |
|
ZeroTier
|
ZeroTier VPN |
|
WireGuard
|
WireGuard VPN client and server support |
|
MODBUS
|
|
|
MODBUS TCP SLAVE
|
|
|
ID range
|
Respond to one ID in range [1;255] or any |
|
Allow Remote Access
|
Allow access through WAN |
|
Custom registers
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
|
MODBUS TCP MASTER
|
|
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16 |
|
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
|
MODBUS DATA TO SERVER
|
|
|
Protocol
|
HTTP(S), MQTT, Azure MQTT |
|
MQTT GATEWAY
|
|
|
MQTT gateway
|
Allows sending commands and receiving data from MODBUS Master through MQTT broker |
|
DNP3
|
|
|
Supported modes
|
TCP Master, DNP3 Outstation |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from server, automatic notification |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
Call
|
Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off |
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT
|
MQTT Broker, MQTT publisher |
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
MODBUS
|
MODBUS TCP status/control |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
IoT PLATFORMS
|
|
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability |
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Mediatek MIPS 24Kc 580 MHz |
|
RAM
|
128 MB, DDR2 |
|
FLASH storage
|
16 MB, SPI Flash |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
SDK package with build environment provided |
|
INPUT/OUTPUT
|
|
|
Input
|
1 x Digital input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
|
Output
|
1 x Digital open collector output, max output 30 V, 300 mA |
|
Events
|
SMS, EMAIL, RMS |
|
POWER
|
|
|
Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 – 30 VDC, reverse polarity protection; surge protection >31VDC 10us max |
|
PoE (passive)
|
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
|
Power consumption
|
< 2 W idle, < 7 W Max |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
|

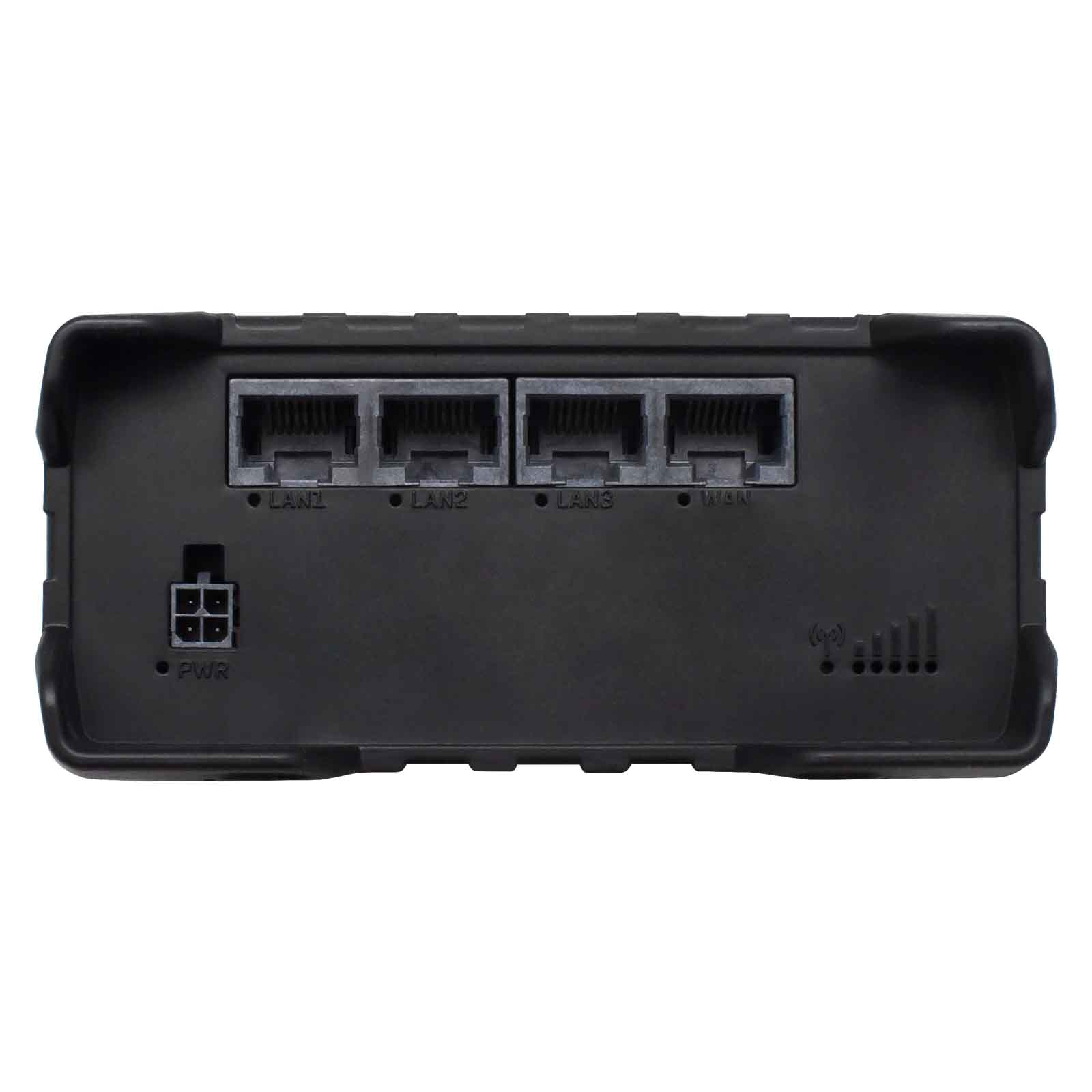

Ethernet
|
4 x RJ45 ports, 10/100 Mbps |
|
I/O’s
|
1 x Digital Input, 1 x Digital Output on 4 pin power connector (available from HW revision 1600) |
|
Status LEDs
|
1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED |
|
SIM
|
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
|
Power
|
1 x 4 pin power connector |
|

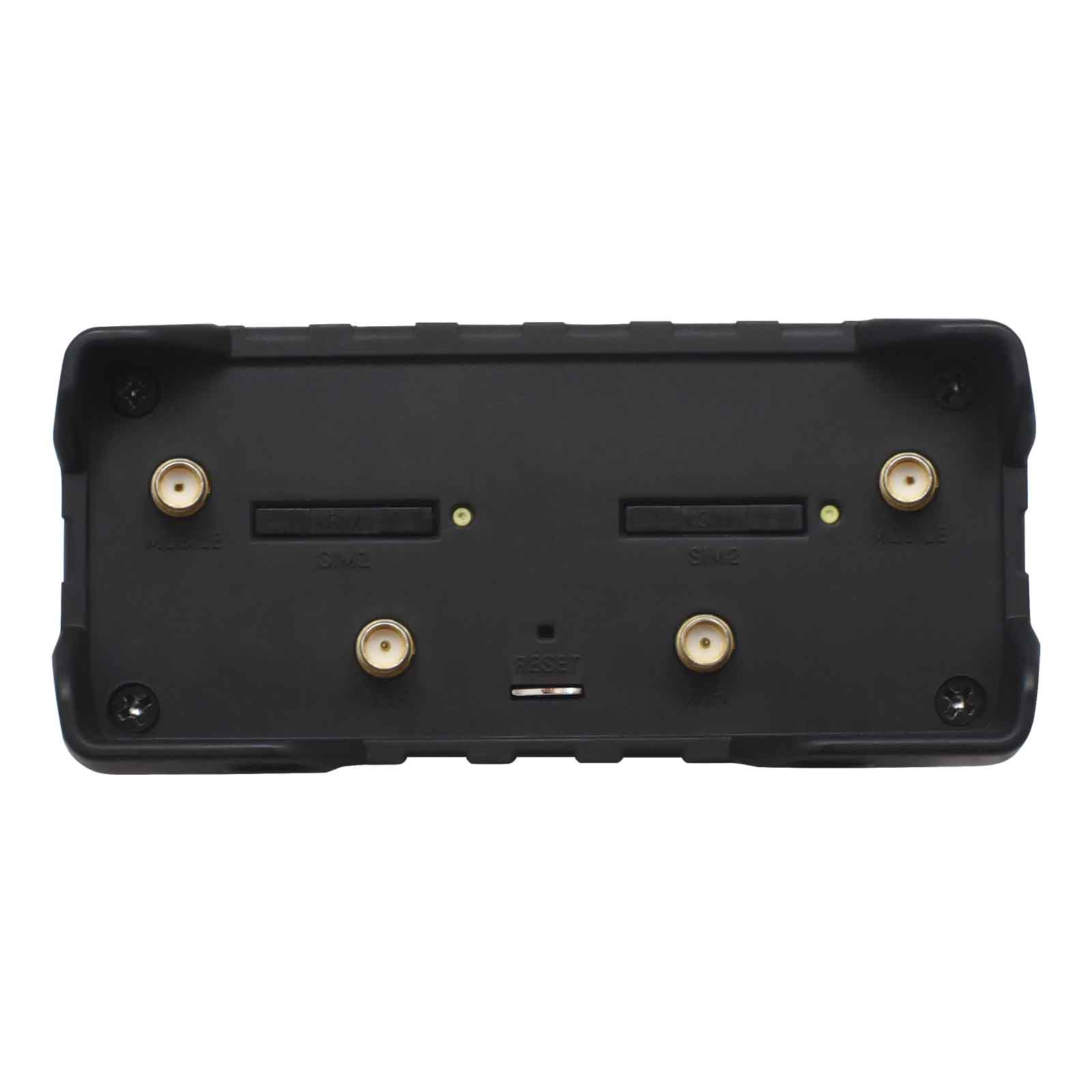

Antennas
|
2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors |
|
Reset
|
Reboot/User default reset/Factory reset button |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Aluminium housing, plastic panels |
|
Dimensions (W x H x D)
|
110 x 50 x 100 mm |
|
Weight
|
287 g |
|

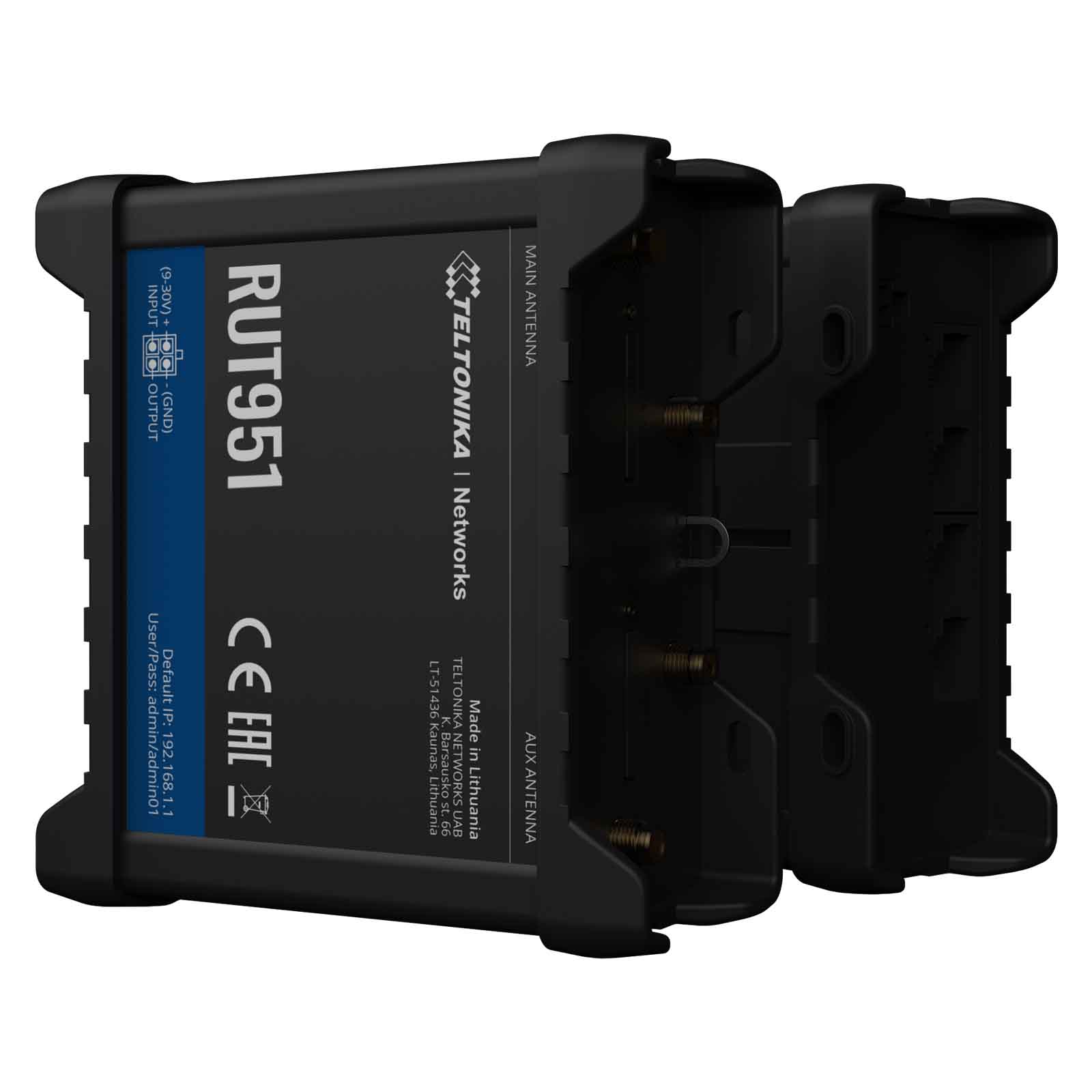

Mounting options
|
DIN rail (can be mounted on two sides), flat surface placement |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10% to 90% non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE/RED, UKCA, CB |
|
EMI IMMUNITY
|
|
|
Standards
|
EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019 |
|
ESD
|
EN 61000-4-2:2009 |
|
Radiated Immunity
|
EN 61000-4-3:2020 |
|
EFT
|
EN 61000-4-4:2012 |
|
Surge Immunity (AC Mains Power Port)
|
EN 61000-4-5:2014+A1:2017 |
|
CS
|
EN 61000-4-6:2014 |
|
DIP
|
EN IEC 61000-4-11:2020 |
|
RF
|
|
|
Standards
|
EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1 |
|
SAFETY
|
|
|
Standards
|
EN IEC 62311:2020 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 |
