INTERFACES
|
|
|
Ethernet
|
8 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover 2 x SFP ports |
|
PERFORMANCE SPECIFICATIONS
|
|
|
Bandwidth (Non-blocking)
|
20 Gbps |
|
Packet buffer
|
128 KB |
|
MAC address table size
|
2K entries |
|
Jumbo frame support
|
9216 bytes |
|
POWER
|
|
|
Connector
|
2 pin industrial DC power socket |
|
Input voltage range
|
7-57 VDC |
|
Power consumption
|
Idle: ~1.03 W / Max: 3.71 W |
|
PHYSICAL INTERFACES (PORTS, LEDS)
|
|
|
Ethernet
|

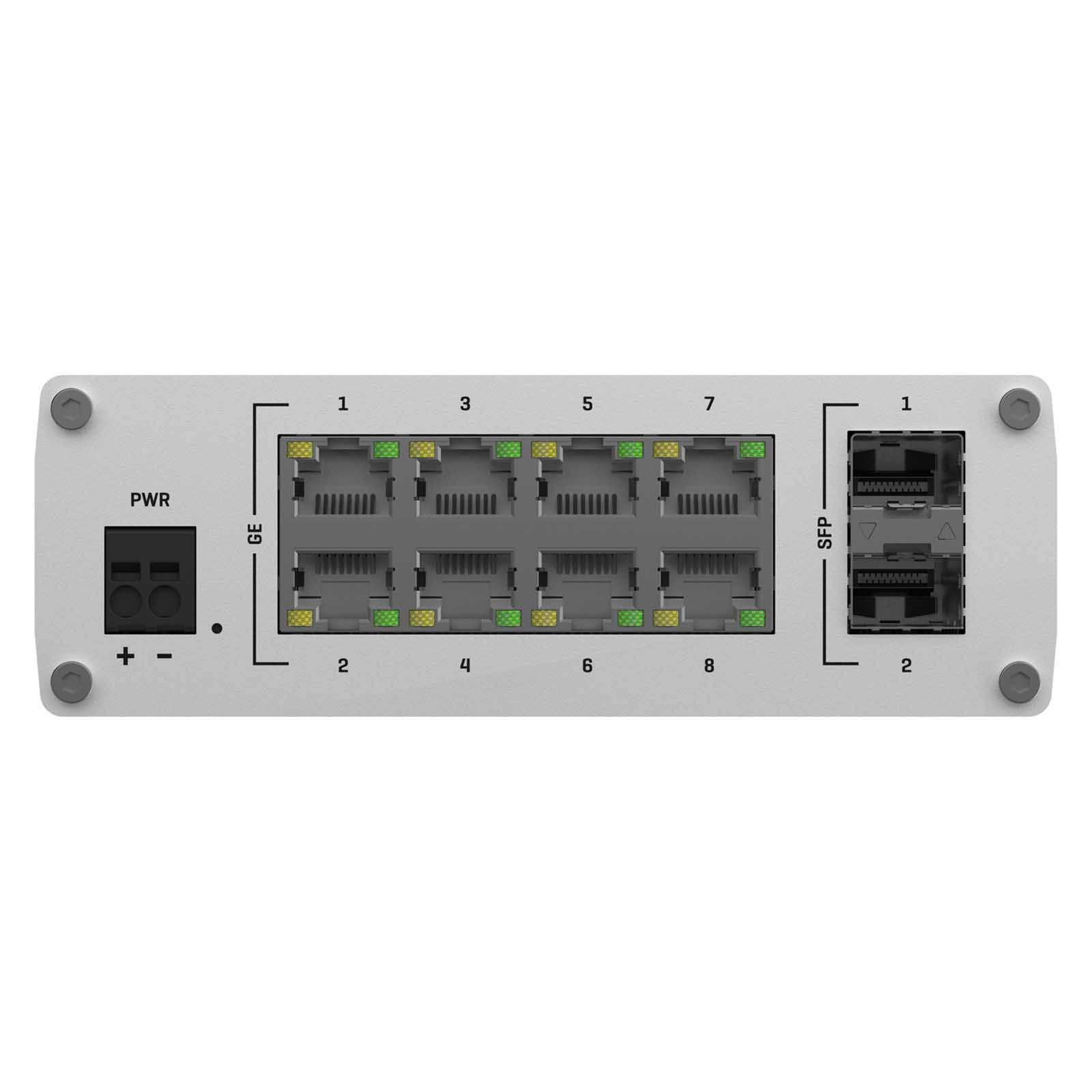

8 x RJ45 ports, 10/100/1000 Mbps |
|
Fiber
|
2 x SFP ports |
|
Status LED’s
|
1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
|
Power
|
1 x 2 pin industrial DC power socket |
|
Ground
|

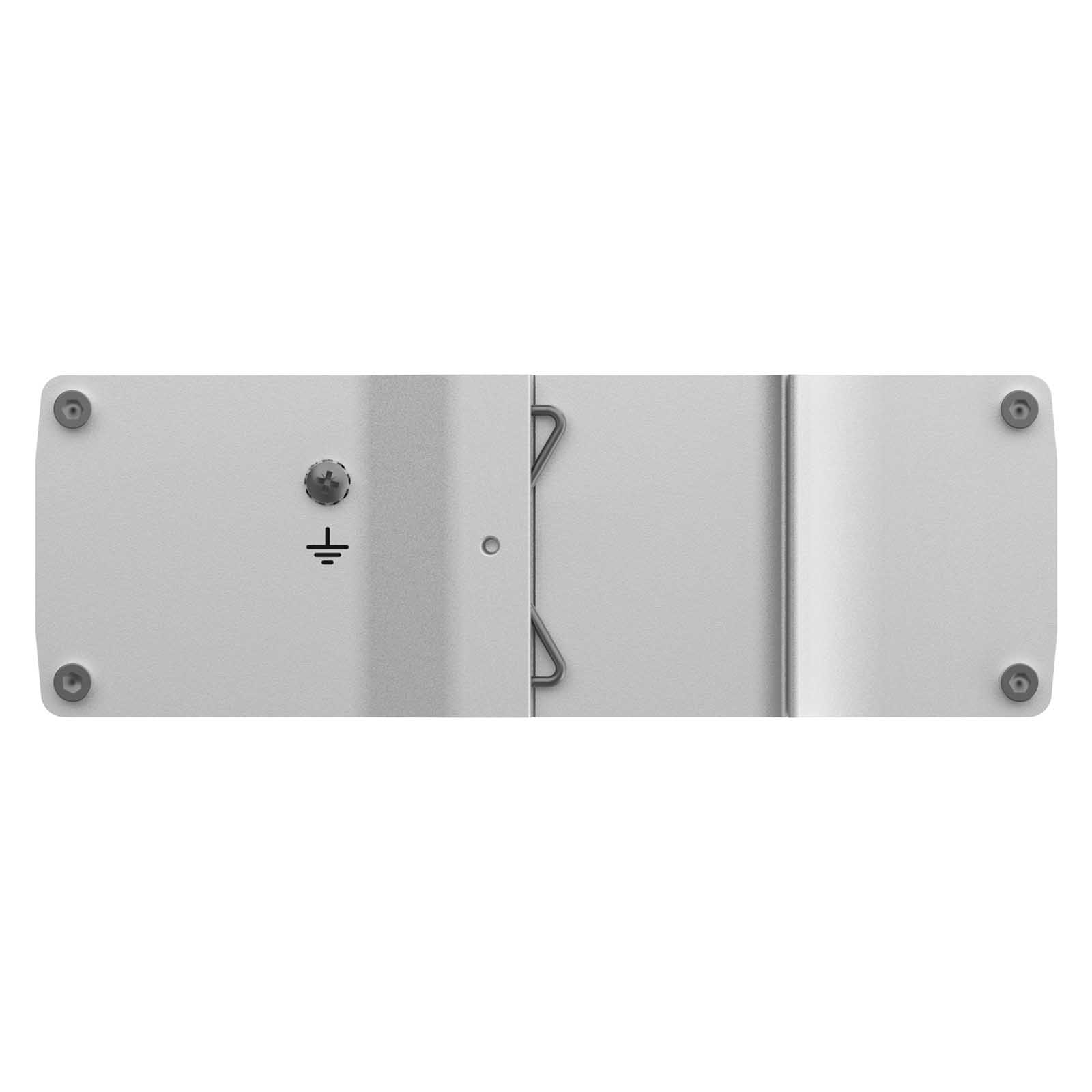

1 x Grounding screw |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Full aluminum housing |
|
Dimensions (W x H x D)
|
132 x 44.2 x 95.1 mm |
|
Weight
|
500 g |
|
Mounting
|

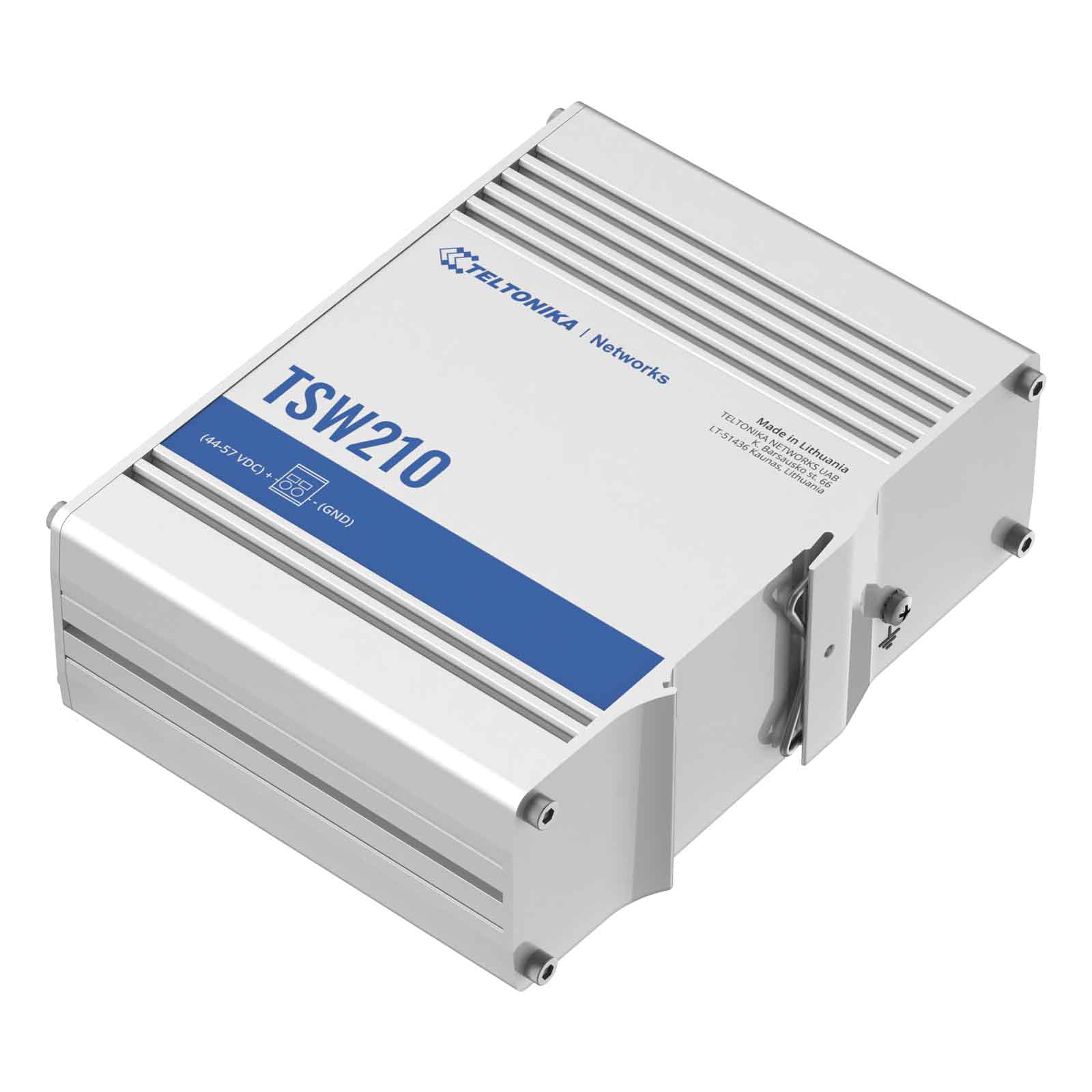

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed) |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to +75 °C |
|
Operating humidity
|
10 % to 90 % non condensing |
|
Ingress Protection Rating
|
IP30 |
