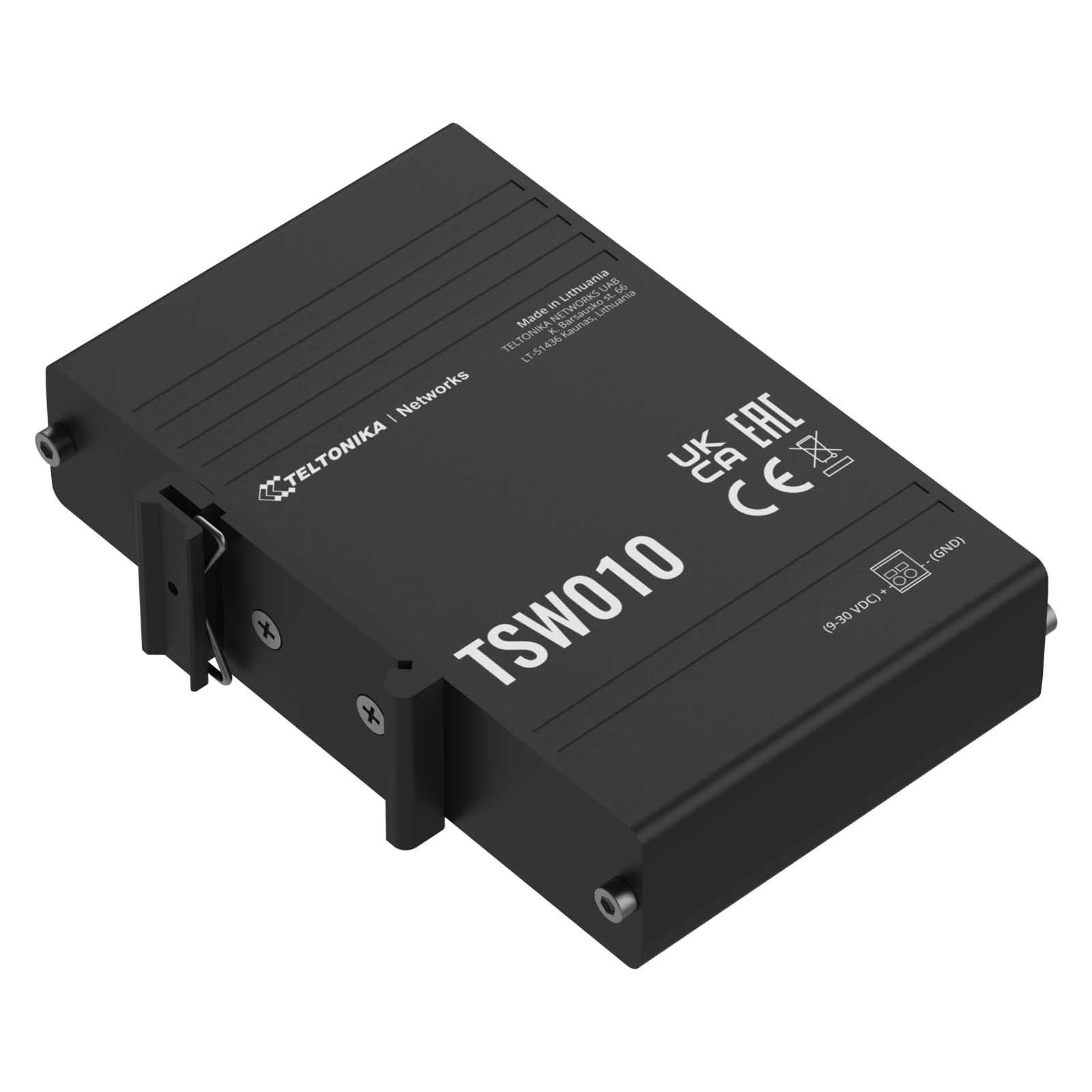

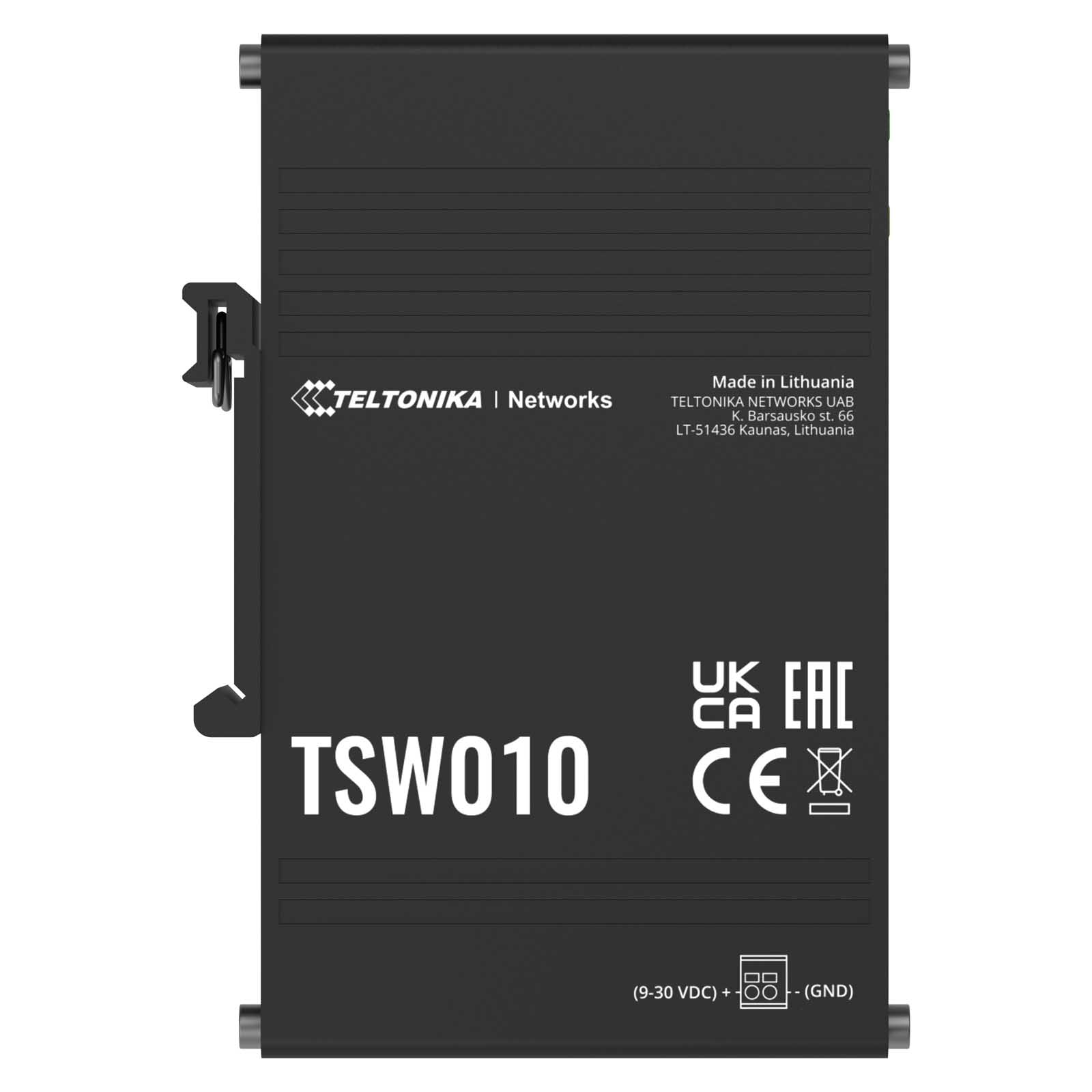

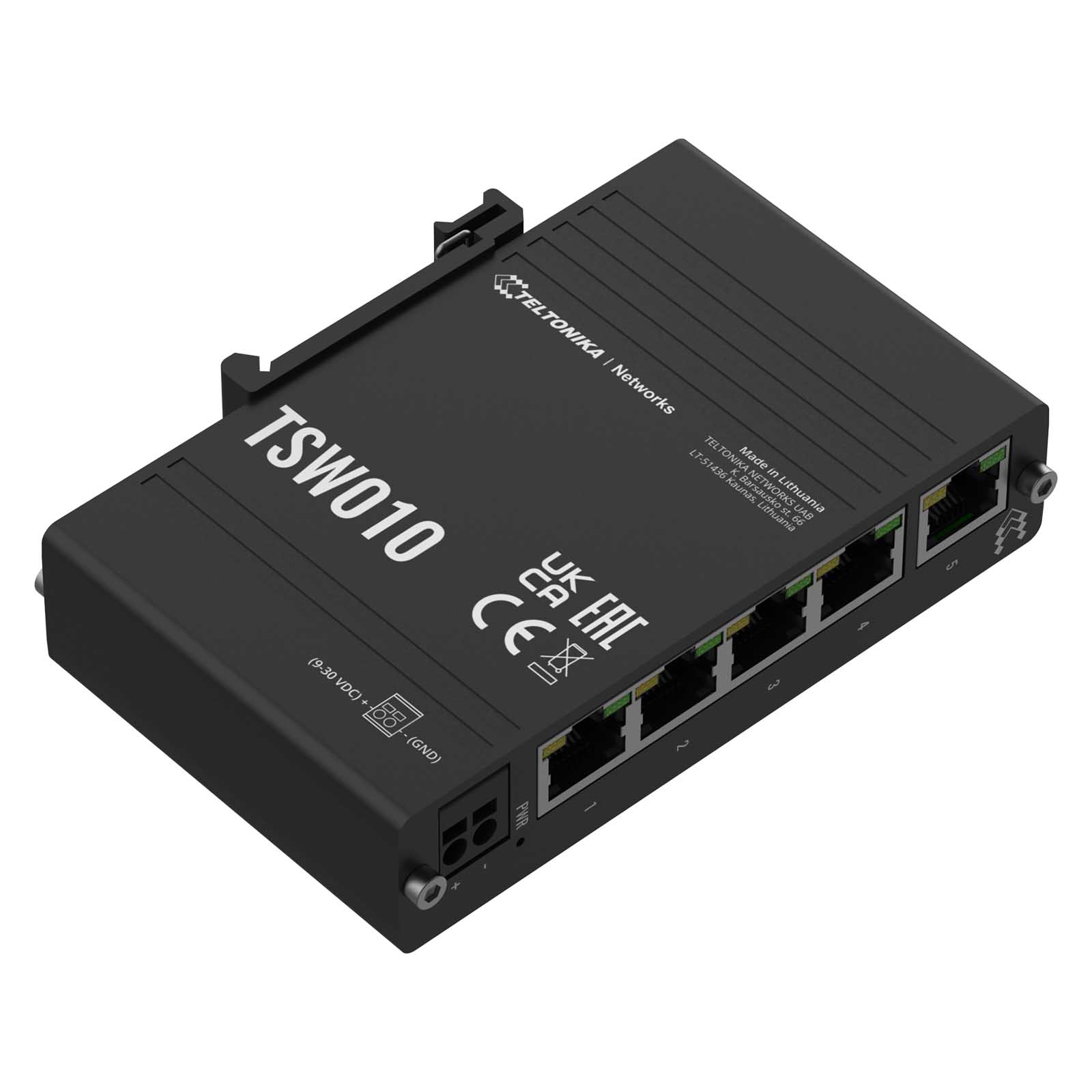

Teltonika TSW010
|
|
|
LAN
|
5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
PERFORMANCE SPECIFICATIONS
|
|
|
Bandwidth (Non-blocking)
|
1 Gbps |
|
MAC address table size
|
2K entries |
|
Jumbo frame support
|
2048 bytes |
|
POWER
|
|
|
Connector
|
2-pin industrial DC power socket |
|
Input voltage range
|
9 - 30 VDC |
|
PoE (passive)
|
Passive PoE. Possibility to power up through first LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
|
Power consumption (idle/max)
|
Idle: 0.3 W / Max: 0.9 W |
|
PHYSICAL INTERFACES (PORTS, LEDS)
|
|
|

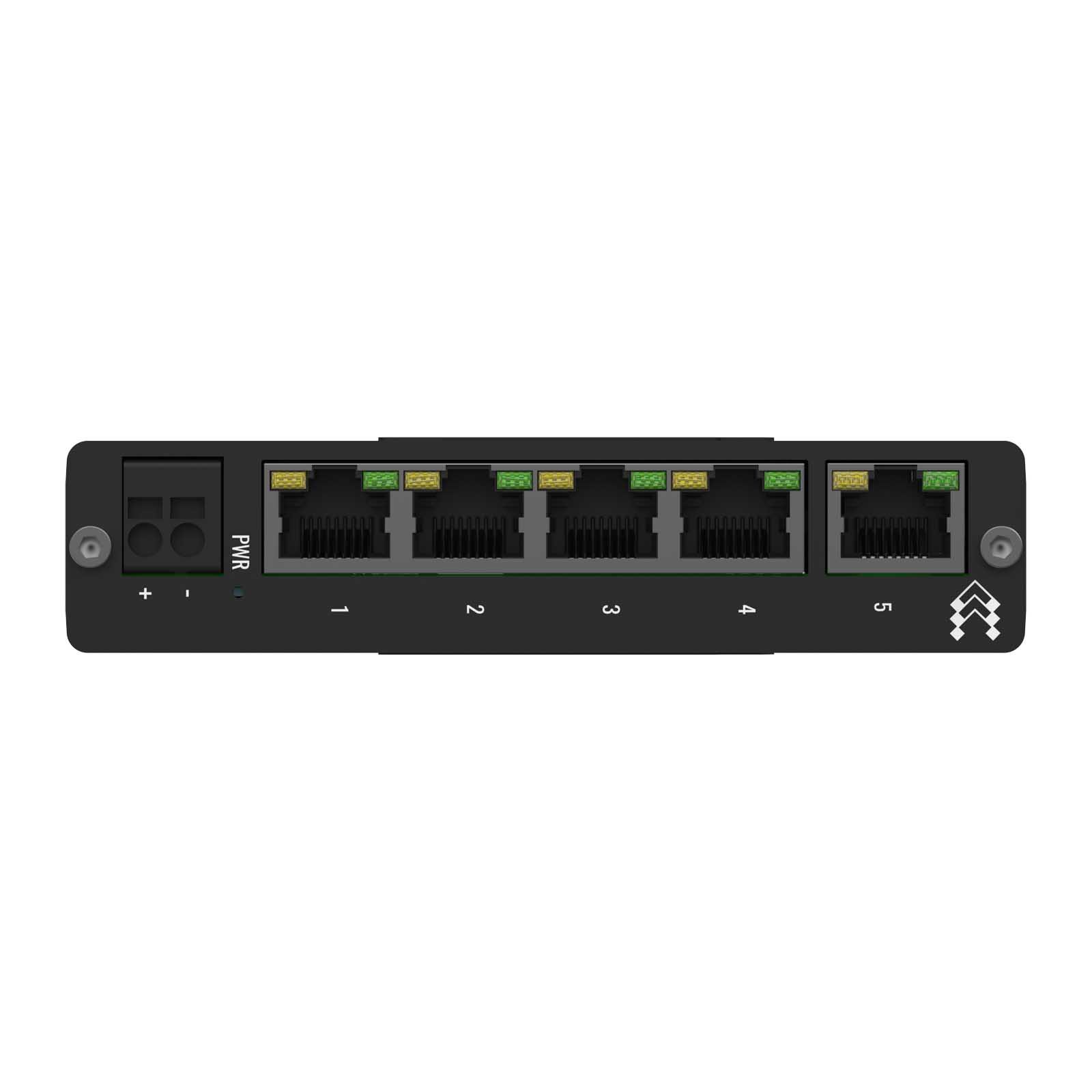

Ethernet
|
5 x RJ45 ports, 10/100 Mbps |
|
Status LEDs
|
1 x Power LED, 10 x LAN status LEDs |
|
Power
|
1 x 2-pin industrial DC power socket |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Anodized aluminum housing and panels |
|
Dimensions (W x H x D)
|
113.1 x 27.4 x 80.5 mm |
|
Weight
|
146.5 g |
|

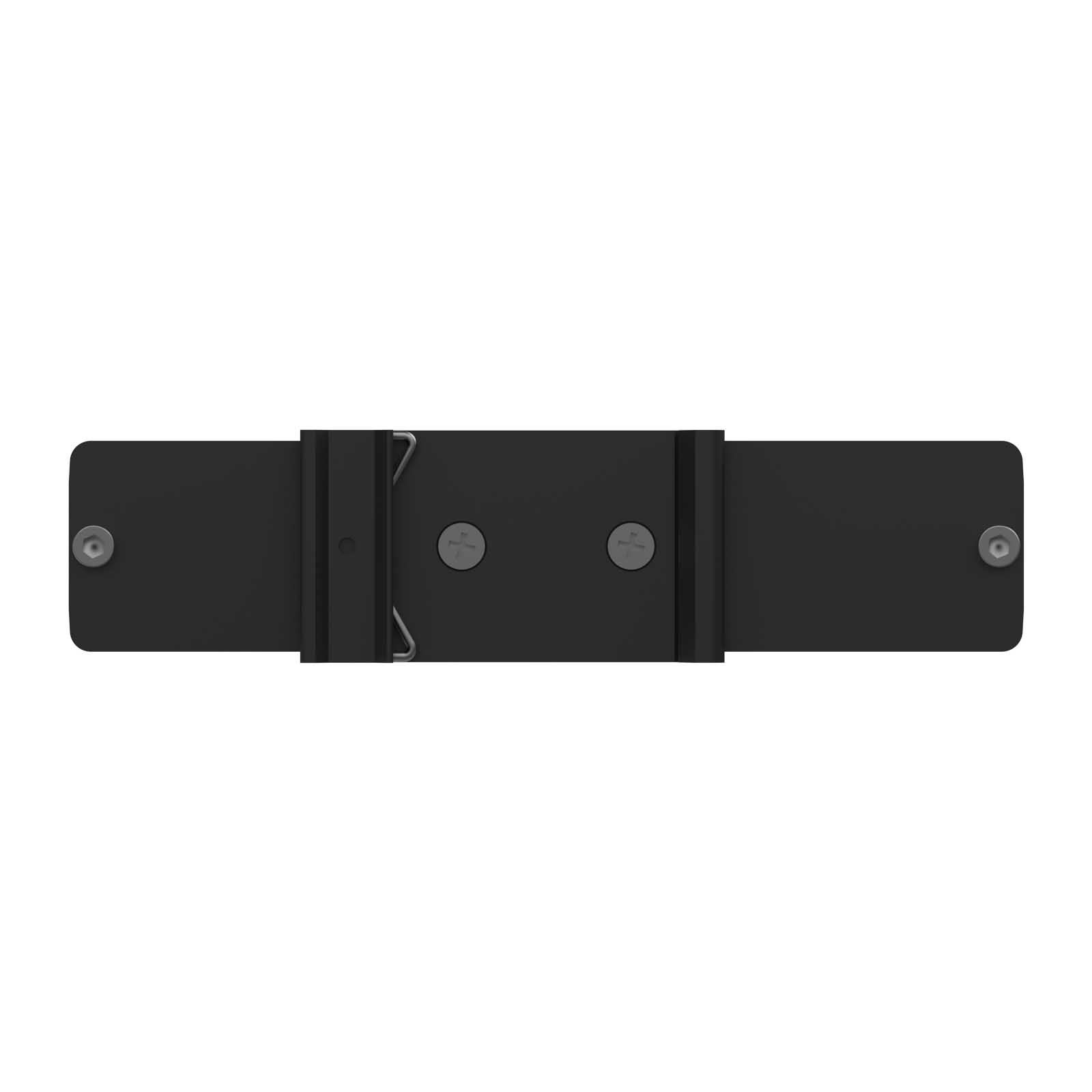

Mounting options
|
DIN rail or wall mounting (additional kit needed), flat surface placement |
|
CERTIFICATION & APPROVALS
|
|
|
Regulatory
|
CE, REACH, RoHS, WEEE |
| UKCA, FCC, IC, CB, RCM | |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10 % to 90 % non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
SAFETY
|
|
|
Standards
|
EN IEC 62368-1:2020+A11:2020 |
